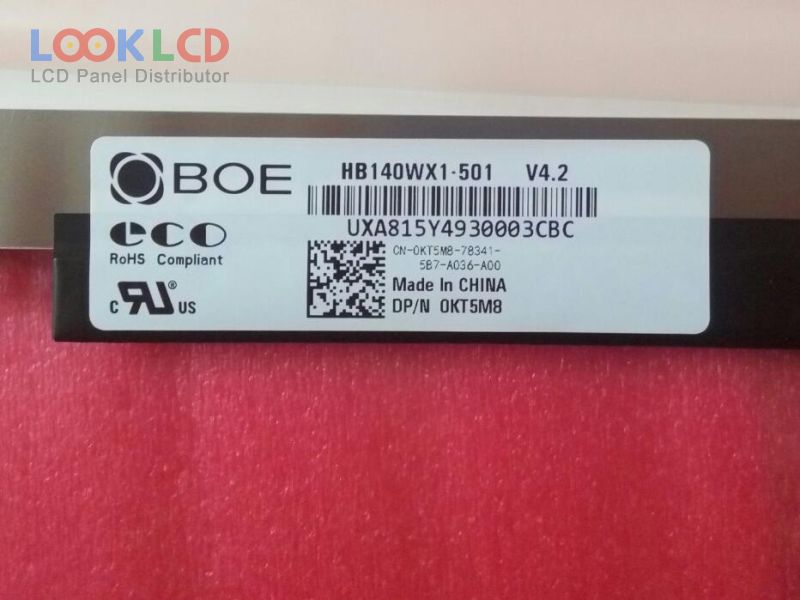

| Varenummer | HB140WX1-501 |
| Mærke | BOE |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | BOE |
| panel model | HB140WX1-501 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 309.399×173.952 mm |
| omrids | 320.9×187.6×3 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| overflade | Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 12 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 9S4PWLEDEmbedded (LED Driver) |
| signal interface | eDP (1 Lane), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| HB140WH1-504 | BOE | 14.0 | 1366×768 |
| HB140WX1-100 | BOE | 14.0 | 1366×768 |
| HB140WX1-200 | BOE | 14.0 | 1366×768 |
| HB140WX1-300 | BOE | 14.0 | 1366×768 |
| HB140WX1-301 | BOE | 14.0 | 1366×768 |
| HB140WX1-400 | BOE | 14.0 | 1366×768 |
| HB140WX1-401 | BOE | 14.0 | 1366×768 |
| HB140WX1-500 | BOE | 14.0 | 1366×768 |
| HB140WX1-501 | BOE | 14.0 | 1366×768 |
| LP140WH2-TLE2 | LG Display | 14.0 | 1366×768 |
| B156HTN04.0 | AUO | 15.6 | 1920×1080 |
| LP104V2-W | LG Display | 10.4 | 640×480 |
| LP140WH1-TLD2 | LG Display | 14.0 | 1366×768 |
| LP141WX3-TLA3 | LG Display | 14.1 | 1280×800 |
| LTD133EQ1B | TOSHIBA | 13.3 | 1280×800 |
| LTN140AT01-G01 | Samsung | 14.0 | 1366×768 |
| LTN141BT01-004 | Samsung | 14.1 | 1440×900 |
| LTN154X1-L03 | Samsung | 15.4 | 1280×800 |
| M125NWR3 R0 | IVO | 12.5 | 1366×768 |
| NL8060BC26-15 | NLT | 10.4 | 800×600 |
