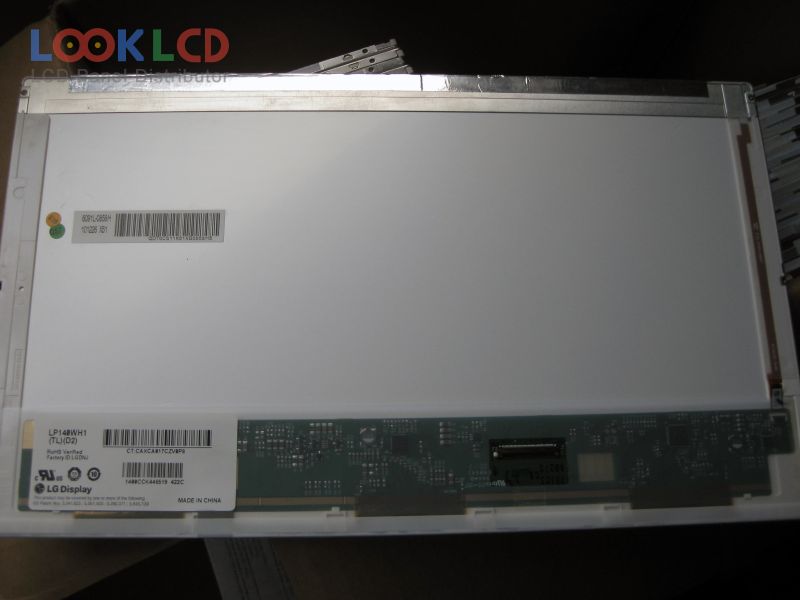

| Varenummer | LP140WH1-TLD2 |
| Mærke | LG Display |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LP140WH1-TLD2 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 309.399×173.952 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | |
| lysstyrke | |
| kontrastforhold | |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | WLED |
| signal interface | LVDS (1 ch, 6-bit) |
| Ansøgning | NBPC |
| LP140WD1-TLM1 | LG Display | 14.0 | 1600×900 |
| LP140WD2-TPB1 | LG Display | 14.0 | 1600×900 |
| LP140WF1-SPK1 | LG Display | 14.0 | 1920×1080 |
| LP140WH1-TLA1 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TLD1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLQ1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLD1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLP1 | LG Display | 14.0 | 1366×768 |
| LP140WH6-TJA1 | LG Display | 14.0 | 1366×768 |
| LP140WHU-TPB2 | LG Display | 14.0 | 1366×768 |
| B133EW07 V2 | AUO | 13.3 | 1280×800 |
| B140XTN02.3 | AUO | 14.0 | 1366×768 |
| IAQX10N | IDTech | 15.0 | 2048×1536 |
| LP101WH1-TLP1 | LG Display | 10.1 | 1366×768 |
| LP141WX1-TLE3 | LG Display | 14.1 | 1280×800 |
| LP154WX4-TLB4 | LG Display | 15.4 | 1280×800 |
| LQ156D1JX03 | SHARP | 15.6 | 3840×2160 |
| LQ164M1LA4A | SHARP | 16.4 | 1920×1080 |
| LTN121AT07-L02 | Samsung | 12.1 | 1280×800 |
| N156B6-L3D | Innolux | 15.6 | 1366×768 |
