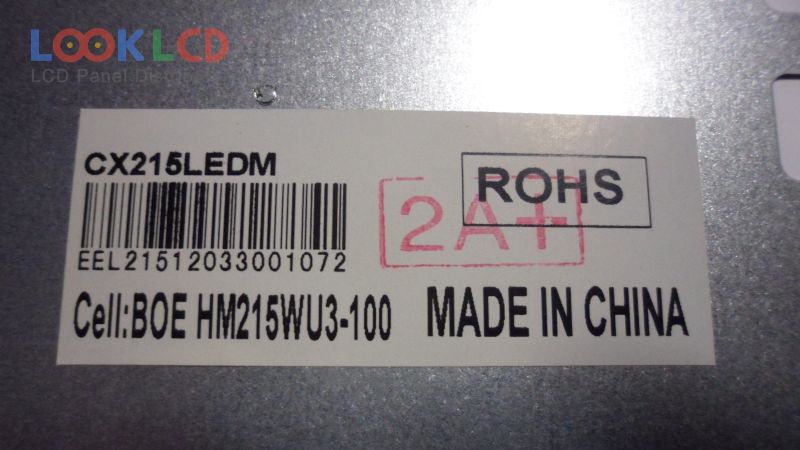

| Varenummer | HM215WU3-100 |
| Mærke | BOE |
| Størrelse | 21.5 |
| Ansøgning | DMPC |
| Løsning | 1920×1080 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | No B/L |
| Interface | LVDS |
| panel mærke | BOE |
| panel model | HM215WU3-100 |
| paneltype | a-Si TFT-LCD , CELL |
| panelstørrelse | 21.5 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 476.64×268.11 mm |
| omrids | 487.2×281 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| glas dybde | 0.70+0.70 mm |
| transmissivitet | 5.8% (Typ.)(with Polarizer) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC) |
| responstid | 1.5/3.5 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
| CLAA150XP01Q V2 | CPT | 15.0 | 1024×768 |
| CLAA215FA01 | CPT | 21.5 | 1920×1080 |
| LM170E01-TLB3 | LG Display | 17.0 | 1280×1024 |
| LM190WX1-TLC1 | LG Display | 19.0 | 1440×900 |
| LM215WF3-SLD1 | LG Display | 21.5 | 1920×1080 |
| LM238WF4-SSA1 | LG Display | 23.8 | 1920×1080 |
| LTM220M1-L02(Glare) | Samsung | 22.0 | 1680×1050 |
| M200HJJ-L20 | Innolux | 19.5 | 1920×1080 |
| M215HGK-L30 | Innolux | 21.5 | 1920×1080 |
| M215HW03 V1Q0 | AUO | 21.5 | 1920×1080 |
