| Varenummer | M215HW03 V1Q0 |
| Mærke | AUO |
| Størrelse | 21.5 |
| Ansøgning | DMPC |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Mini LVDS |
| panel mærke | AUO |
| panel model | M215HW03 V1Q0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 21.5 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 476.64×268.11 mm |
| omrids | 495.6×292.2×8.8 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC) |
| responstid | 3.8/1.2 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 16S4PWLEDWithout Driver |

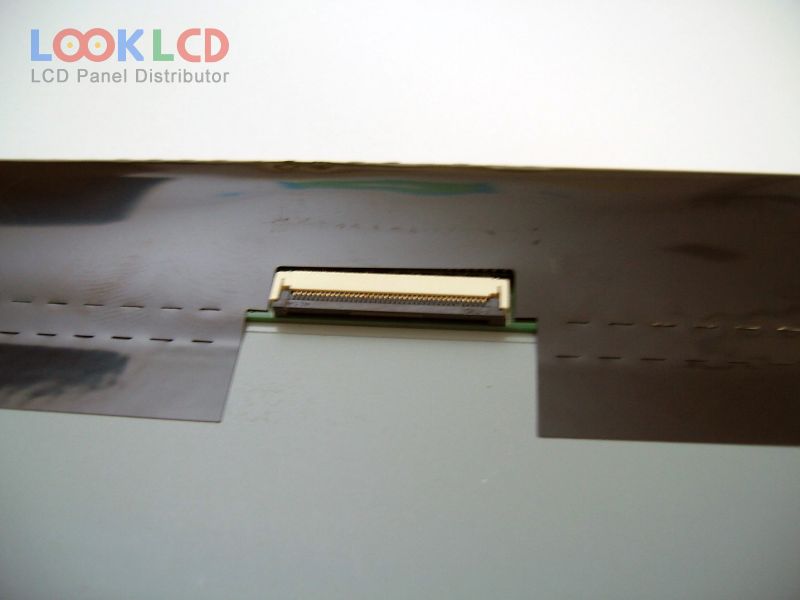

| signal interface | Mini LVDS, 40 pins |
| indgangsspænding | 3.3/12.8/27.0/-10.3V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | DMPC |
