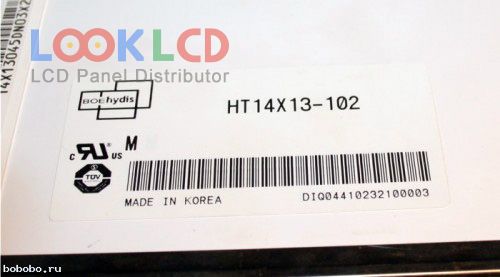

| Varenummer | HT14X13-102 |
| Mærke | HYDIS |
| Størrelse | 14.1 |
| Ansøgning | NBPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 150 |
| CR | 200:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |

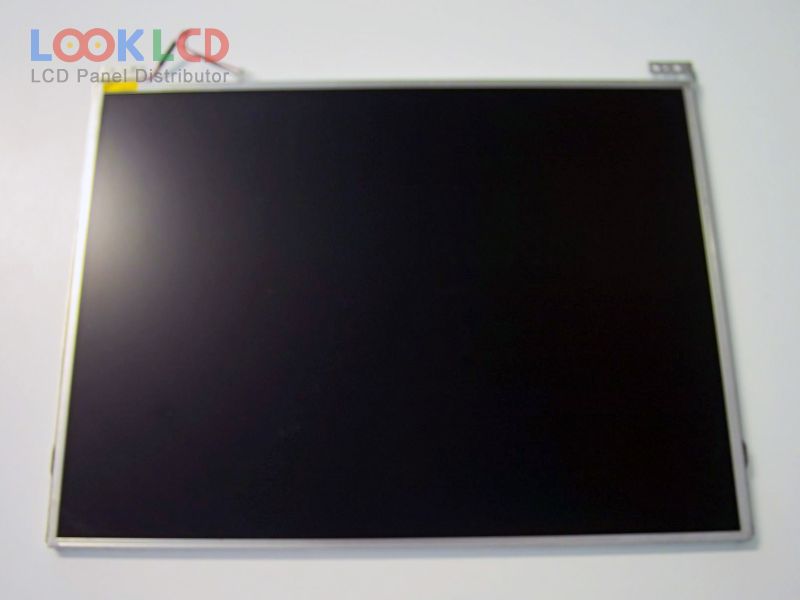

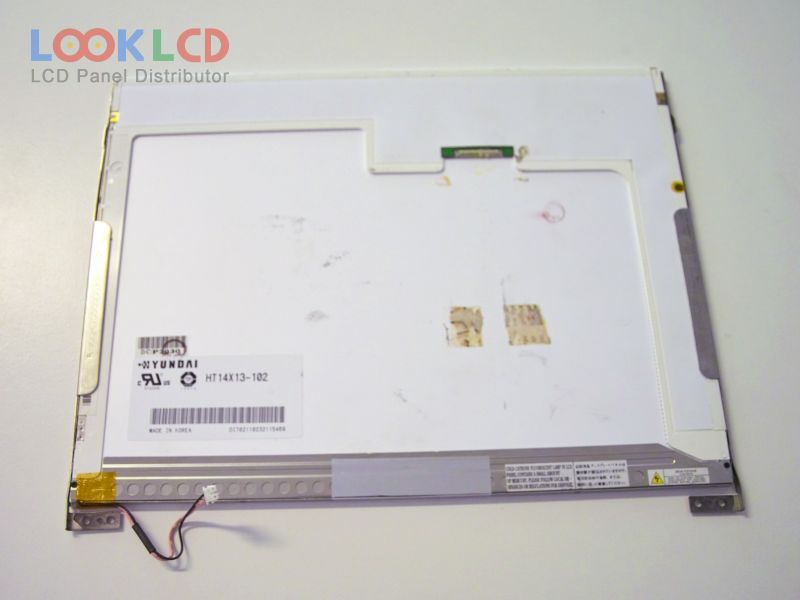

| panel mærke | HYUNDAI |
| panel model | HT14X13-102 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.1 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 285.696×214.272 mm |
| omrids | 298.5×227.5×6 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare |
| lysstyrke | 150 cd/m² (Typ.) |
| kontrastforhold | 200:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 40/50 (Max.)(Tr/Td) |
| synsvinkel | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
