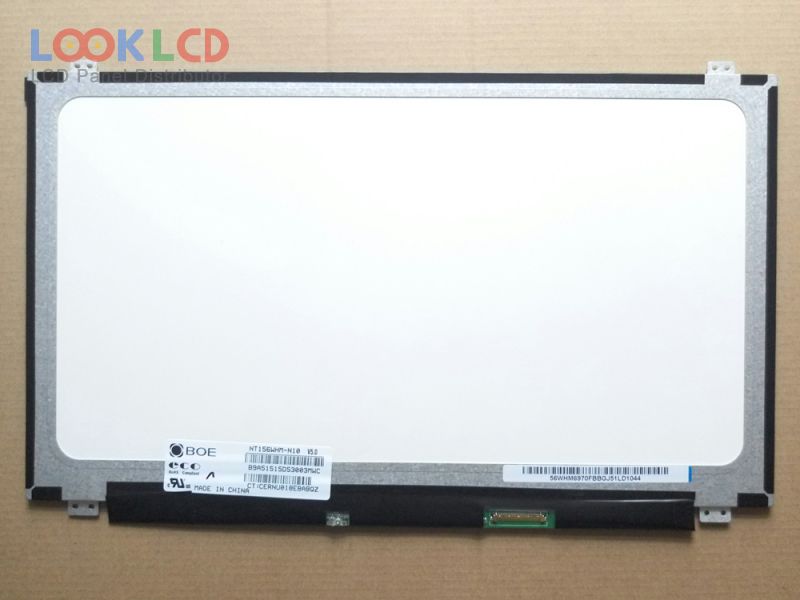

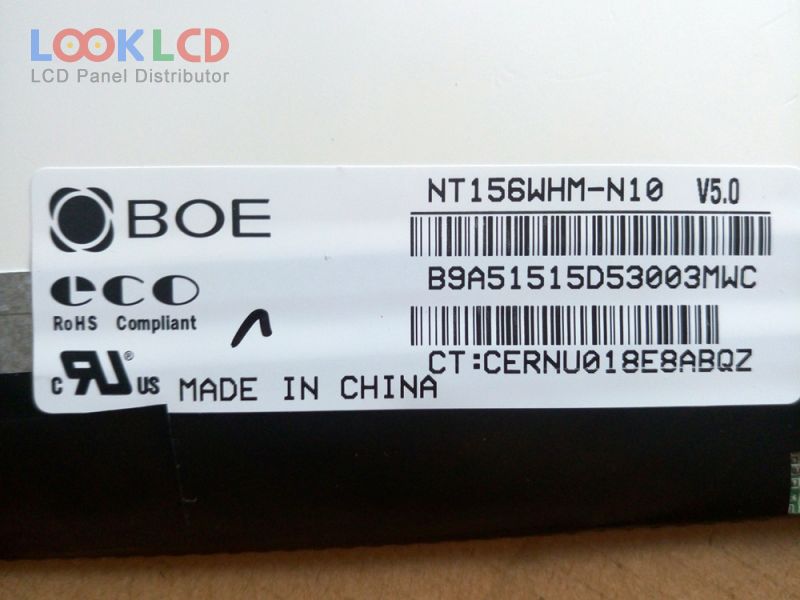

| Varenummer | NT156WHM-N10 |
| Mærke | BOE |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | BOE |
| panel model | NT156WHM-N10 5 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 344.232×193.536 mm |
| omrids | 359.5×223.8×3.8 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Glare (Haze 0%) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 12 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 9S4PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| BT156GW02 V.0 | Innolux | 15.6 | 1366×768 |
| LP156WH3-TLQ1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN2 | LG Display | 15.6 | 1366×768 |
| LTN156AT35-W01 | Samsung | 15.6 | 1366×768 |
| N156B6-L01 | Innolux | 15.6 | 1366×768 |
| NT156WHM-N10 | BOE | 15.6 | 1366×768 |
| NT156WHM-N12 | BOE | 15.6 | 1366×768 |
| NT156WHM-N33 | BOE | 15.6 | 1366×768 |
| NT156WHM-N42 | BOE | 15.6 | 1366×768 |
| NT156WHM-N50 | BOE | 15.6 | 1366×768 |
| B133XW03 V2 | AUO | 13.3 | 1366×768 |
| B133XW07 V0 | AUO | 13.3 | 1366×768 |
| B141EW04 V0 | AUO | 14.1 | 1280×800 |
| CLAA150PB03 | CPT | 15.0 | 1400×1050 |
| HN116WX1-100 | BOE | 11.6 | 1366×768 |
| LP125WF1-SPD1 | LG Display | 12.5 | 1920×1080 |
| LP154WX7-TLA1 | LG Display | 15.4 | 1280×800 |
| LTD121EDDZ | TOSHIBA | 12.1 | 1024×768 |
| LTN133AT17-H01 | Samsung | 13.3 | 1366×768 |
| N150P2-L06 | IDTech | 15.0 | 1400×1050 |
