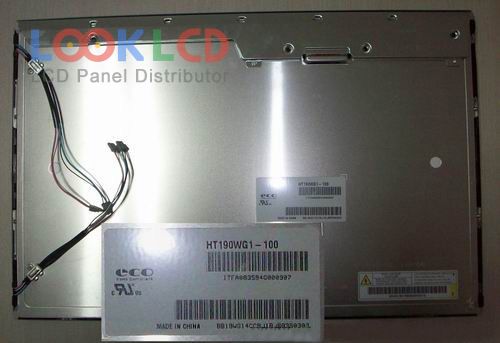

| Varenummer | HT190WG1-100 |
| Mærke | BOE |
| Størrelse | 19.0 |
| Ansøgning | DMPC |
| Løsning | 1440×900 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 700:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | BOE |
| panel model | HT190WG1-100 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 19.0 inch |
| løsning | 1440(RGB)×900 , WXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 408.24×255.15 mm |
| omrids | 428×278×19 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC) |
| responstid | 1.5/3.5 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
| HT190WG1-100 | BOE | 19.0 | 1440×900 |
| HT190WG1-600 | BOE | 19.0 | 1440×900 |
| HT190WG1-602 | BOE | 19.0 | 1440×900 |
| HT190WG3-100 | BOE | 19.0 | 1440×900 |
| HT190WG3-101 | BOE | 19.0 | 1440×900 |
| HT190WG3-500 | BOE | 19.0 | 1440×900 |
| LM190E08-TLG4 | LG Display | 19.0 | 1280×1024 |
| LM190WX2-TLK1 | LG Display | 19.0 | 1440×900 |
| M190Z3-L02 | Innolux | 19.0 | 1680×1050 |
| P190MWW1-404 | IVO | 19.0 | 1440×900 |
| CLAA185WA03 | CPT | 18.5 | 1366×768 |
| HT215F01-100 | BOE | 21.5 | 1920×1080 |
| LM220WE4-SLB1 | LG Display | 22.0 | 1680×1050 |
| LM300WQ5-SDA1 | LG Display | 30.0 | 2560×1600 |
| M236HJK-L3B | Innolux | 23.6 | 1920×1080 |
| M270H3-L01 | Innolux | 27.0 | 1920×1080 |
| MT190AW02 V.Y | Innolux | 19.0 | 1440×900 |
| NL10276AC30-07 | NLT | 15.0 | 1024×768 |
| P236MWF1 R0 | IVO | 23.6 | 1920×1080 |
| SVA156WX1-01TB | SVA-NEC | 15.6 | 1366×768 |
