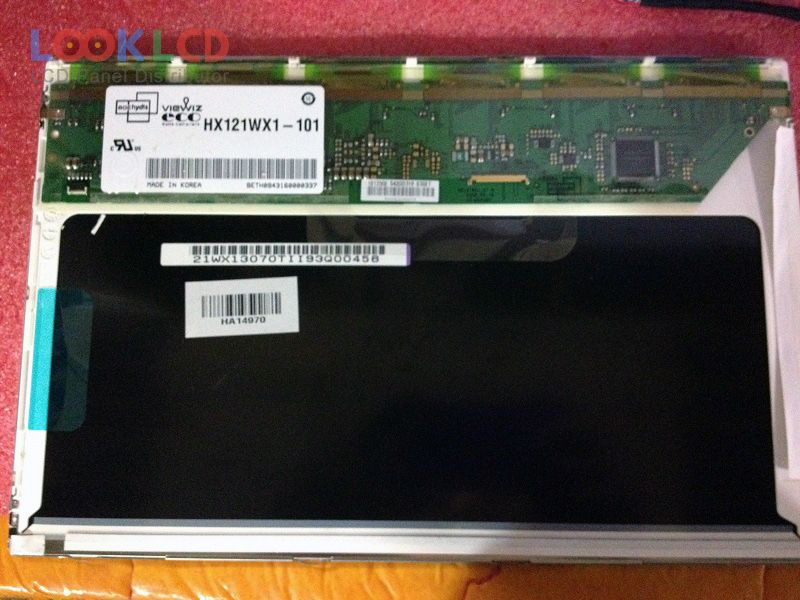

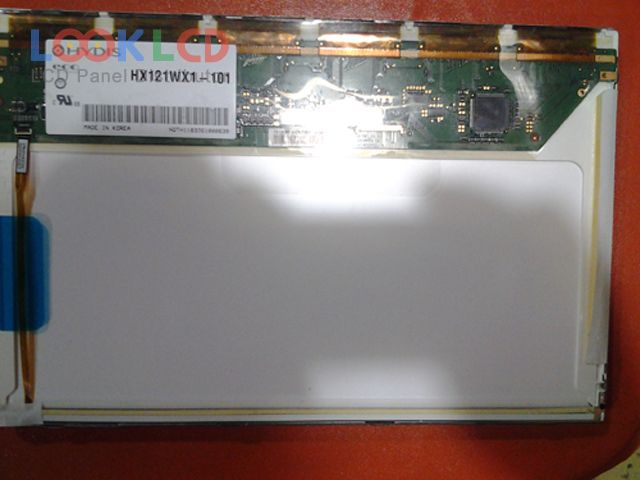

| Varenummer | HX121WX1-101 |
| Mærke | HYDIS |
| Størrelse | 12.1 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 700:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | HYDIS |
| panel model | HX121WX1-101 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | AFFS, Normally Black, Transmissive |
| aktivt område | 261.12×163.2 mm |
| omrids | 276.8×180×6.8 mm |
| overflade | Antiglare, Hard coating (2H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193142% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 90/90/90/90 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 12S4PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B121EW01 V0 | AUO | 12.1 | 1280×800 |
| HT12X21-220 | HYDIS | 12.1 | 1024×768 |
| HX121WX1-100 | HYDIS | 12.1 | 1280×800 |
| HX121WX1-101 | HYDIS | 12.1 | 1280×800 |
| HX121WX1-103 | HYDIS | 12.1 | 1280×800 |
| HX121WX1-110 | HYDIS | 12.1 | 1280×800 |
| HX121WX1-111 | HYDIS | 12.1 | 1280×800 |
| LP121X1-A2M1 | LG Display | 12.1 | 1024×768 |
| LT121DKXBF00 | TOSHIBA | 12.1 | 1280×800 |
| LTD121C31S | TOSHIBA | 12.1 | 800×600 |
| B140HAT02.0 | AUO | 14.0 | 1920×1080 |
| L141X1-1 | AUO | 14.1 | 1024×768 |
| LP140WH1-TLE3 | LG Display | 14.0 | 1366×768 |
| LP156WH2-TLAA | LG Display | 15.6 | 1366×768 |
| LP173WF1-TLA1 | LG Display | 17.3 | 1920×1080 |
| LTD121EDFN | TOSHIBA | 12.1 | 1024×768 |
| LTN121AP03-002 | Samsung | 12.1 | 1280×800 |
| LTN154X9-L02 | Samsung | 15.4 | 1280×800 |
| N133BGE-L31 | Innolux | 13.3 | 1366×768 |
| N156BGE-L31 | Innolux | 15.6 | 1366×768 |
