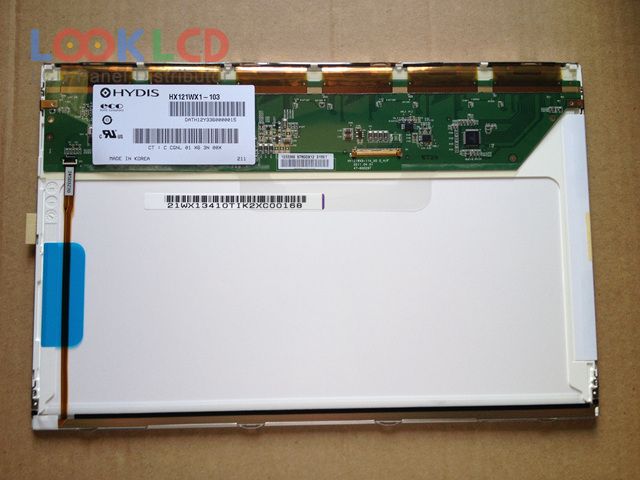

| Varenummer | HX121WX1-103 |
| Mærke | HYDIS |
| Størrelse | 12.1 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | HYDIS |
| panel model | HX121WX1-103 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | AFFS+, Normally Black, Transmissive |
| aktivt område | 261.12×163.2 mm |
| omrids | 276.8×180×6.8 mm |
| overflade | Antiglare, Hard coating (2H), Antireflection |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193142% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 12S4PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
