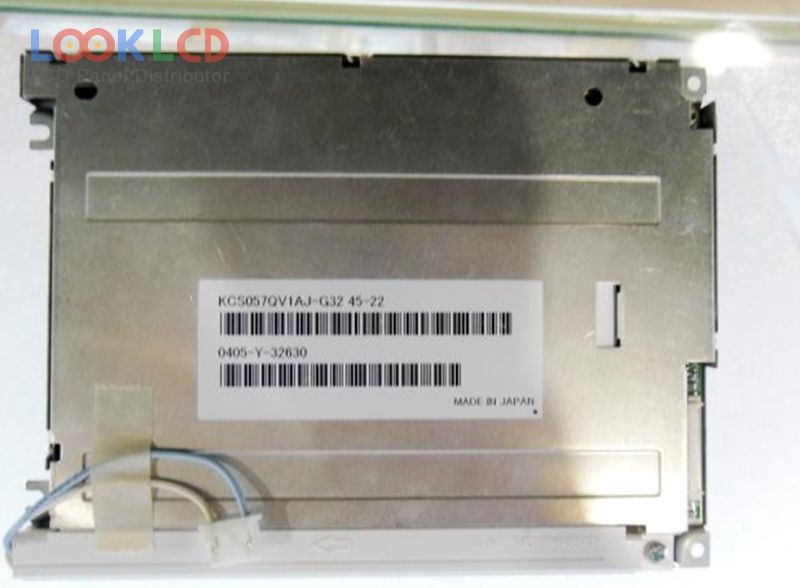

| Varenummer | KCS057QV1AJ-G32 |
| Mærke | Kyocera |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 40:1 |
| Farver | Color |
| Baggrundsbelysning | CCFL |
| Interface | Parallel Data |
| panel mærke | Kyocera |
| panel model | KCS057QV1AJ-G32 |
| paneltype | CSTN-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | STN, Normally Black, Transmissive |
| aktivt område | 115.2×86.4 mm |
| omrids | 154.6×114.8×9 mm |
| overflade | Glare (Haze 0%) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 40:1 (Typ.) |
| vise farver | Color |
| responstid | 220/110 (Typ.)(Tr/Td) |
| synsvinkel | 50/50/40/50 (Typ.)(CR≥2)(L/R/U/D) |
| frekvens | 75Hz |
| lampe type | 1 pcsCCFLOptional |

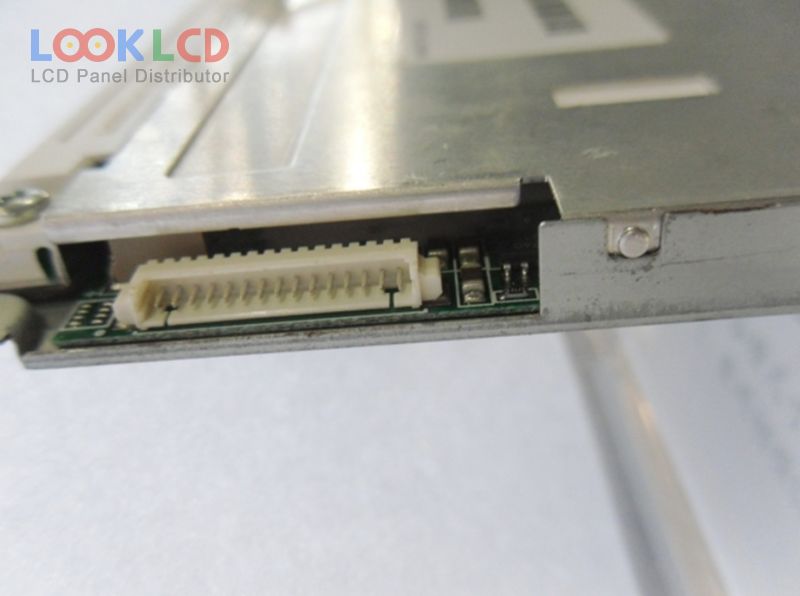

| signal interface | Parallel Data (8-bit), 15 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | IA |
