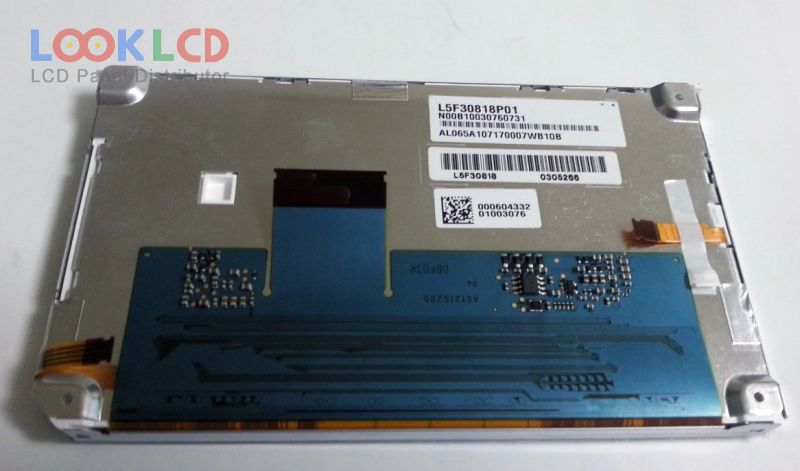

| Varenummer | L5F30818P01 |
| Mærke | Epson |
| Størrelse | 6.5 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 850 |
| CR | 700:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | Epson |
| panel model | L5F30818P01 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 6.5 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | Normally Black, Transmissive |
| aktivt område | 144×78.24 mm |
| omrids | 159.9×93.4 mm |
| overflade | |
| lysstyrke | 850 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥100)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 5S4PWLEDWithout Driver |
| signal interface | CMOS (1 ch, 6-bit) + SPI, 50 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | CNS |
| L5F30614T23 | SANYO | 8.0 | 800×480 |
| L5F30614T64 | SANYO | 8.0 | 800×480 |
| L5F30614T65 | SANYO | 8.0 | 800×480 |
| L5F30705T10 | Epson | 5.0 | 400×240 |
| L5F30812P00 | Epson | 13.3 | 1024×768 |
| L5F30818P01 | Epson | 6.5 | 800×480 |
| L5F30818P03 | SONY | 6.5 | 800×480 |
| L5F30818P04 | SONY | 6.5 | 800×480 |
| L5F30947T00 | Epson | 6.5 | 800×480 |
| L5F30947T0A | Epson | 6.5 | 800×480 |
| 70WVW2A | SII | 7.0 | 800×480 |
| C030DW01 V0 | AUO | 3.0 | 320×240 |
| G121S1-L02 | Innolux | 12.1 | 800×600 |
| G121X1-L04 | Innolux | 12.1 | 1024×768 |
| L5S30883P00 | SANYO | 4.5 | 480×240 |
| LQ050A5BS01 | SHARP | 5.0 | 320×234 |
| LQ064A5CG01 | SHARP | 6.4 | 480×234 |
| LQ080Y5DR01 | SHARP | 8.0 | 800×480 |
| LQ080Y5DW30 | SHARP | 8.0 | 800×480 |
| TM062RDH03 | Tianma | 6.2 | 800×480 |
