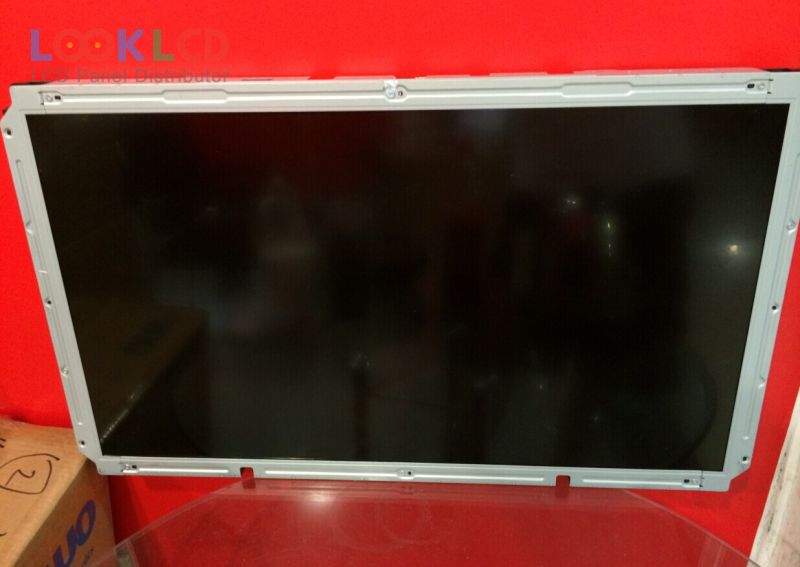

| Varenummer | LK260T3LA17 |
| Mærke | SHARP |
| Størrelse | 26.0 |
| Ansøgning | LCTV |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 2500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SHARP |
| panel model | LK260T3LA17 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 26.0 inch |
| løsning | 1366×768(RGB) , WXGA |
| visningstilstand | ASV, Normally Black, Transmissive |
| aktivt område | 575.769×323.712 mm |
| omrids | 626×373 mm |
| overflade | Antiglare, Hard coating (2H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 2500:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 7 (Typ.)(Tr+Td) |
| synsvinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 8 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
