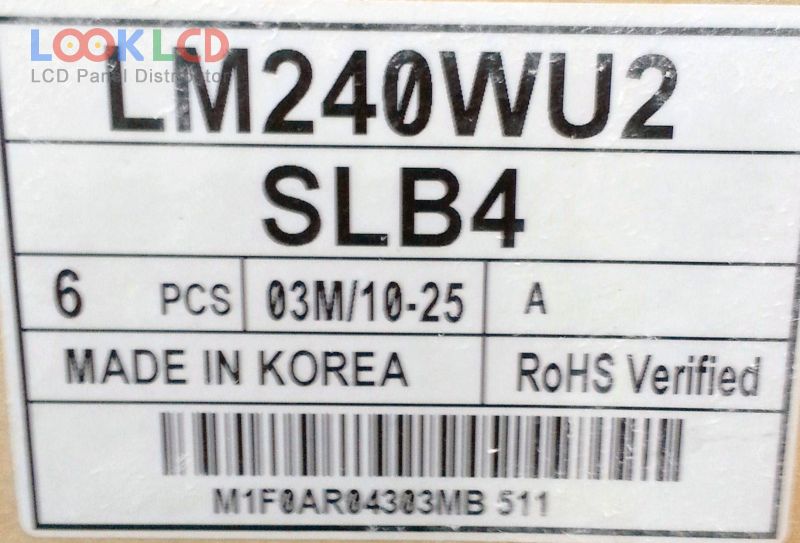

| Varenummer | LM240WU2-SLB4 |
| Mærke | LG Display |
| Størrelse | 24.0 |
| Ansøgning | DMPC |
| Løsning | 1920×1200 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | LG.Philips LCD |
| panel model | LM240WU2-SLB4 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 24.0 inch |
| løsning | 1920(RGB)×1200 , WUXGA |
| visningstilstand | S-IPS, Normally Black, Transmissive |
| aktivt område | 518.4×324 mm |
| omrids | 546.4×350 mm |
| overflade | Glare (Haze 0%), Hard coating (2H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 5.5/6.5 (Typ.)(Tr/Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 14 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | DMPC |
