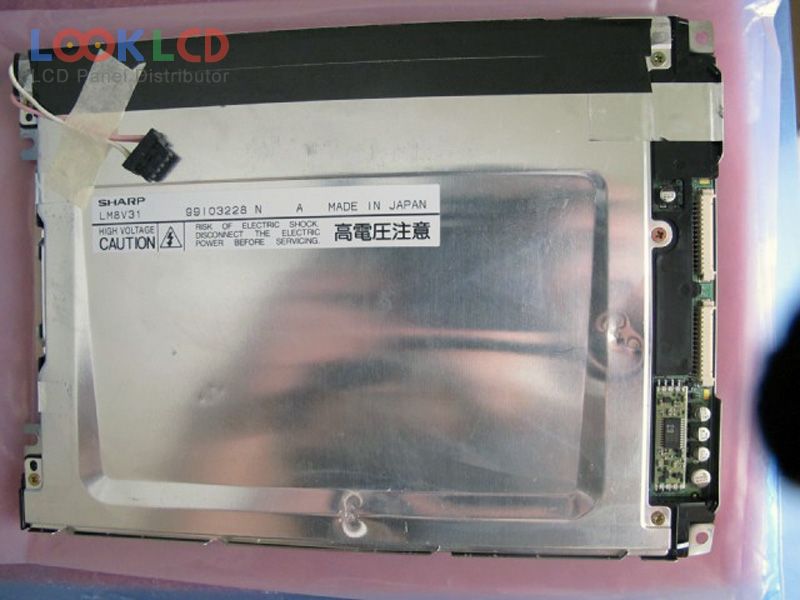

| Varenummer | LM8V31 |
| Mærke | SHARP |
| Størrelse | 7.7 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 55 |
| CR | 30:1 |
| Farver | Color |
| Baggrundsbelysning | CCFL |
| Interface | Parallel Data |
| panel mærke | SHARP |
| panel model | LM8V31 |
| paneltype | CSTN-LCD , LCM |
| panelstørrelse | 7.7 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | STN, Normally Black, Transmissive |
| aktivt område | 157.42×118.06 mm |
| omrids | 197×142.5 mm |
| overflade | |
| lysstyrke | 55 cd/m² (Typ.) |
| kontrastforhold | 30:1 (Typ.) |
| vise farver | Color |
| responstid | 270/80 (Typ.)(Tr/Td) |
| synsvinkel | 30/30/25/15 (Typ.)(CR≥5)(L/R/U/D) |
| frekvens | 75Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel Data (8-bit), 29 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
