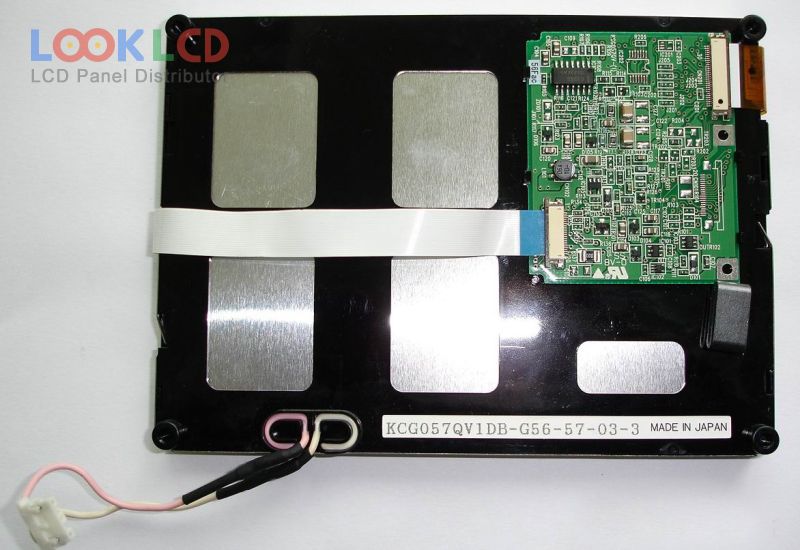

| Varenummer | KCG057QV1DB-G56 |
| Mærke | Kyocera |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | 60:1 |
| Farver | Color |
| Baggrundsbelysning | CCFL |
| Interface | Parallel Data |
| panel mærke | Kyocera |
| panel model | KCG057QV1DB-G56 |
| paneltype | CSTN-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | STN, Normally Black, Transmissive |
| aktivt område | 115.2×86.4 mm |
| omrids | 144×104.8×13.2 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | 60:1 (Typ.) |
| vise farver | Color |
| responstid | 180/170 (Typ.)(Tr/Td) |
| synsvinkel | 50/50/20/35 (Typ.)(CR≥2)(L/R/U/D) |
| frekvens | 75Hz |
| lampe type | 1 pcsCCFLOptional |
| signal interface | Parallel Data (8-bit), 20 pins |
| Ansøgning | IA |
