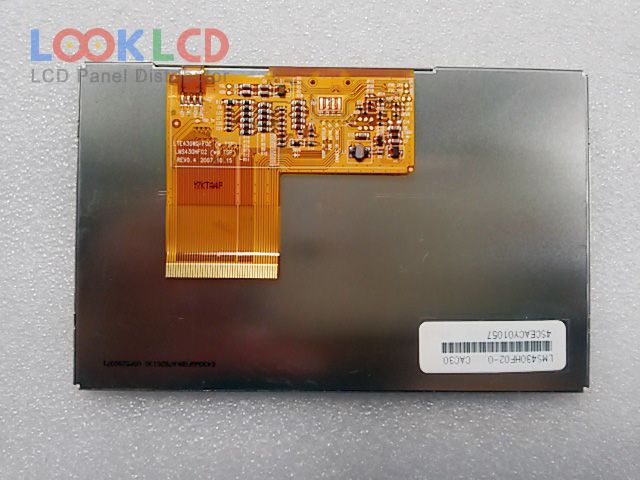

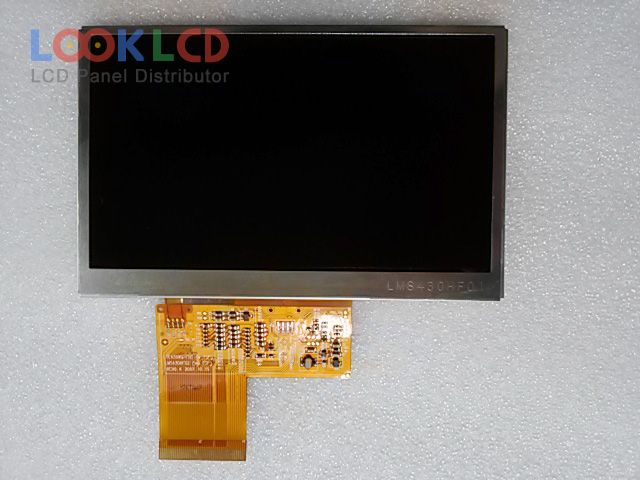

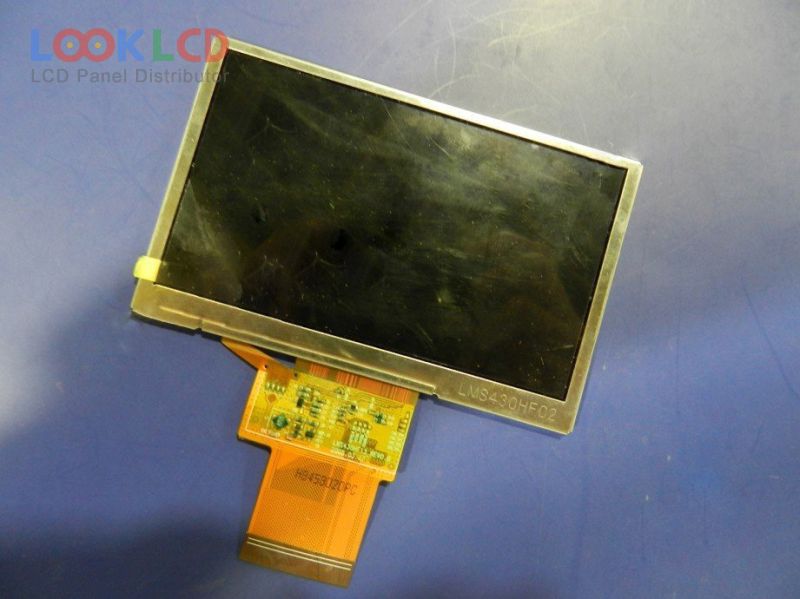

| Varenummer | LMS430HF02 |
| Mærke | Samsung |
| Størrelse | 4.3 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 900:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SAMSUNG |
| panel model | LMS430HF02 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.3 inch |
| løsning | 480×272(RGB) , WQVGA |
| visningstilstand | VA, Normally Black, TMR |
| aktivt område | 95.04×53.856 mm |
| omrids | 105.5×67.2 mm |
| overflade | |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 900 : 1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193150% |
| responstid | 17/15 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 10S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 45 pins |
| indgangsspænding | 2.5/3.3V (Typ.)(VDD) |
| Ansøgning | PND |
| LMS430HF01 | Samsung | 4.3 | |
| LMS430HF01-013 | Samsung | 4.3 | |
| LMS430HF02 | Samsung | 4.3 | 480×272 |
| LMS430HF11 | Samsung | 4.3 | 480×272 |
| LMS430HF11-003 | Samsung | 4.3 | 480×272 |
| LMS430HF12-003 | Samsung | 4.3 | 480×272 |
| LMS430HF19 | Samsung | 4.3 | 480×272 |
| LMS430HF20 | Samsung | 4.3 | 480×272 |
| LMS430HF26 | Samsung | 4.3 | 480×272 |
| LMS430HF27 | Samsung | 4.3 | 480×272 |
| 43WVF1G | SII | 4.3 | 800×480 |
| AT050TN34 | Innolux | 5.0 | 480×272 |
| LB035Q01-TJ01 | LG Display | 3.5 | 320×240 |
| LB043WQ1-TD01 | LG Display | 4.3 | 480×272 |
| LB043WQ3-TD03 | LG Display | 4.3 | 480×272 |
| LB050WQ3-TD04 | LG Display | 5.0 | 480×272 |
| LMS430HF27 | Samsung | 4.3 | 480×272 |
| LQ043T1DG04 | SHARP | 4.3 | 480×272 |
| LTE400WQ-E01 | Samsung | 4.0 | 480×272 |
| TS047NAARB01-00 | Tianma | 4.7 | 480×272 |
