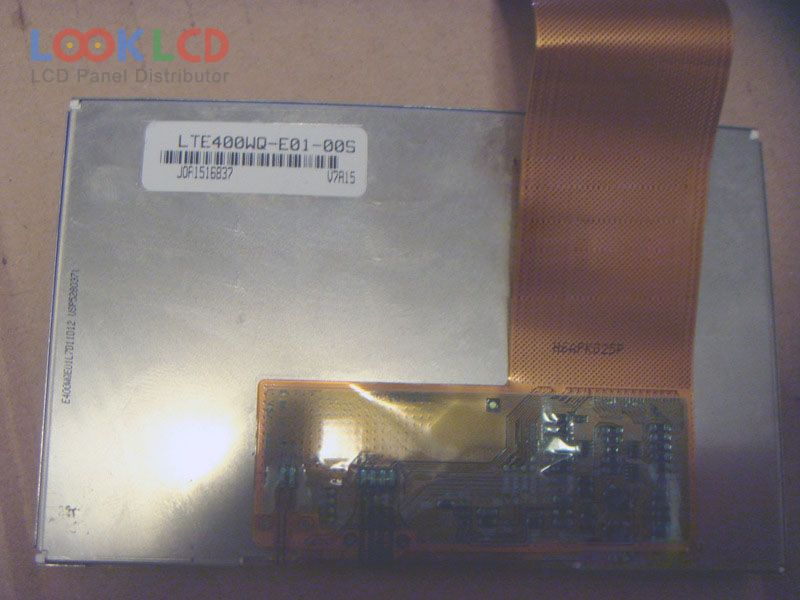

| Varenummer | LTE400WQ-E01 |
| Mærke | Samsung |
| Størrelse | 4.0 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 180 |
| CR | 180:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SAMSUNG |
| panel model | LTE400WQ-E01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.0 inch |
| løsning | 480×272(RGB) , WQVGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 87.84×49.776 mm |
| omrids | 98.3×62.6 mm |
| overflade | |
| lysstyrke | 180 cd/m² (Typ.) |
| kontrastforhold | 180:1 (Typ.)(Transmissive) |
| vise farver | 16.7M (8-bit) |
| responstid | |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | WLED |
| signal interface | Parallel RGB |
| rohs: | |
| Ansøgning | PND |
| AMS395GB01 | Samsung | 4.0 | 360×640 |
| COM40T4M46ULX | ORTUSTECH | 4.0 | 480×800 |
| HSD040I3N1-B00 | HannStar | 4.0 | 320×240 |
| LH400WS1-SD03 | LG Display | 4.0 | 640×1136 |
| LQ040Y3DX80B | SHARP | 4.0 | 480×800 |
| LS040T3SW01 | SHARP | 4.0 | 540×960 |
| LTE400WQ-E01 | Samsung | 4.0 | 480×272 |
| LTP400WQ-F01 | Samsung | 4.0 | 480×272 |
| PD040QT2 | E Ink | 4.0 | 320×240 |
| PD040QX2 | E Ink | 4.0 | 320×240 |
| AT043TN13 TP | Innolux | 4.3 | 480×272 |
| AT043TN24 V.7 | Innolux | 4.3 | 480×272 |
| DLC0430LZG | Other | 4.3 | 480×272 |
| GPM782A0 | Giantplus | 3.5 | 320×240 |
| HSD050IDW1-A30 | HannStar | 5.0 | 800×480 |
| LB035Q04-TD08 | LG Display | 3.5 | 320×240 |
| LB043WQ3-TD01 | LG Display | 4.3 | 480×272 |
| LMS430HF27 | Samsung | 4.3 | 480×272 |
| LQ043T3DX0G | SHARP | 4.3 | 480×272 |
| LR043JC111 | Innolux | 4.3 | 480×272 |
