| Varenummer | LP125WF2-SPB3 |
| Mærke | LG Display |
| Størrelse | 12.5 |
| Ansøgning | NBPC |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 700:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | LG Display |
| panel model | LP125WF2-SPB3 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.5 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 276.48×155.52 mm |
| omrids | 290.5×170.7×2.85 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| overflade | |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |

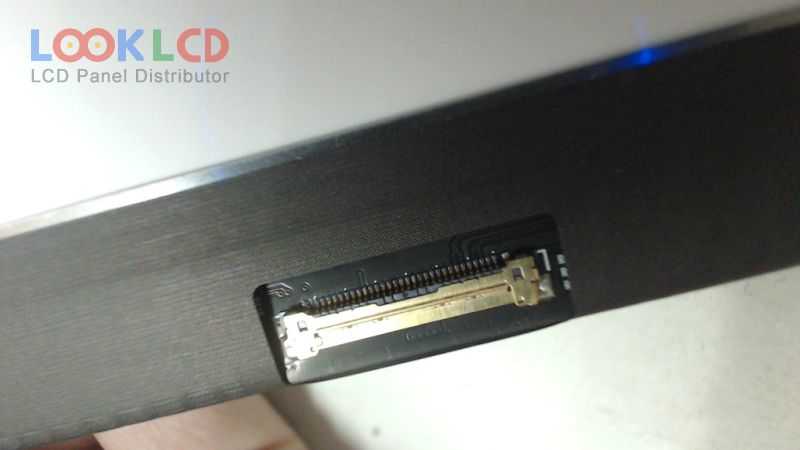

| signal interface | eDP (2 Lanes), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
