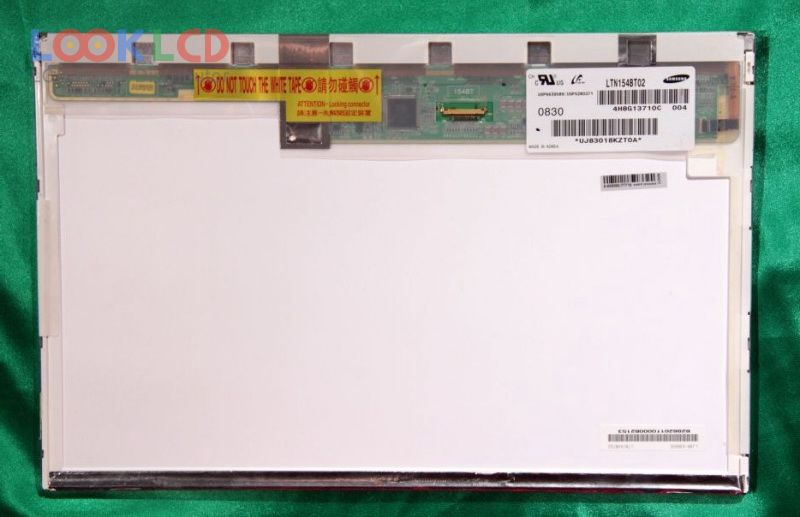

| Varenummer | LTN154BT02-004 |
| Mærke | Samsung |
| Størrelse | 15.4 |
| Ansøgning | NBPC |
| Løsning | 1440×900 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN154BT02-004 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.4 inch |
| løsning | 1440(RGB)×900 , WXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 331.56×207.225 mm |
| omrids | 344×222 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 65/65/60/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | LVDS (2 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B154PW01 V0 | AUO | 15.4 | 1440×900 |
| CLAA154WB04N | CPT | 15.4 | 1280×800 |
| LP154W01-TLA3 | LG Display | 15.4 | 1280×800 |
| LP154WX4-TLCB | LG Display | 15.4 | 1280×800 |
| LTN154BT02-004 | Samsung | 15.4 | 1440×900 |
| LTN154BT05-001 | Samsung | 15.4 | 1440×900 |
| LTN154BT05-D01 | Samsung | 15.4 | 1440×900 |
| LTN154BT07-S01 | Samsung | 15.4 | 1440×900 |
| LTN154CT03-D01 | Samsung | 15.4 | 1920×1200 |
| LTN154X3-L0D | Samsung | 15.4 | 1280×800 |
| B133EW04 V0 | AUO | 13.3 | 1280×800 |
| B141PW04 V0 HW0A | AUO | 14.1 | 1440×900 |
| B141XG09 V0 | AUO | 14.1 | 1024×768 |
| HT140WXB-100 | BOE | 14.0 | 1366×768 |
| LP133X7-P2IB | LG Display | 13.3 | 1024×768 |
| LTN121AP03-001 | Samsung | 12.1 | 1280×800 |
| LTN140AT07-L01 | Samsung | 14.0 | 1366×768 |
| LTN141BT08-002 | Samsung | 14.1 | 1440×900 |
| LTN154X3-L04 | Samsung | 15.4 | 1280×800 |
| N133BGE-E31 | Innolux | 13.3 | 1366×768 |
