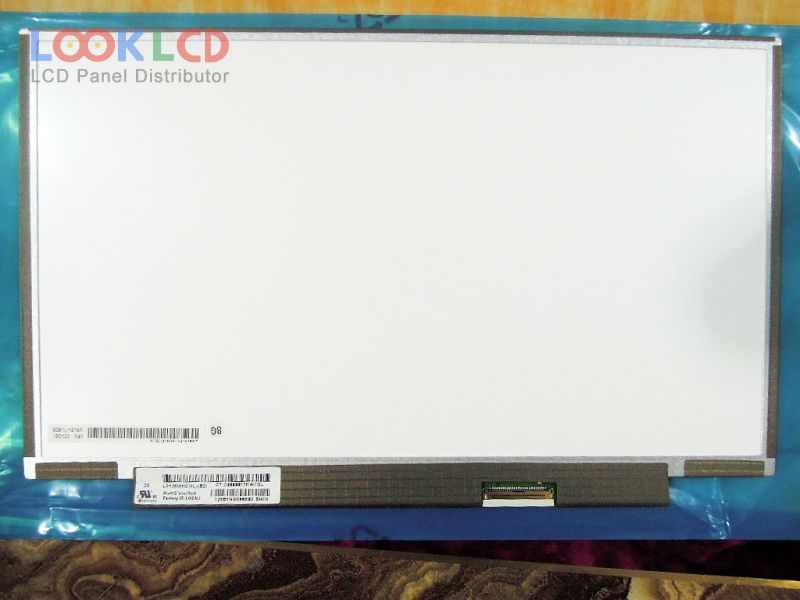

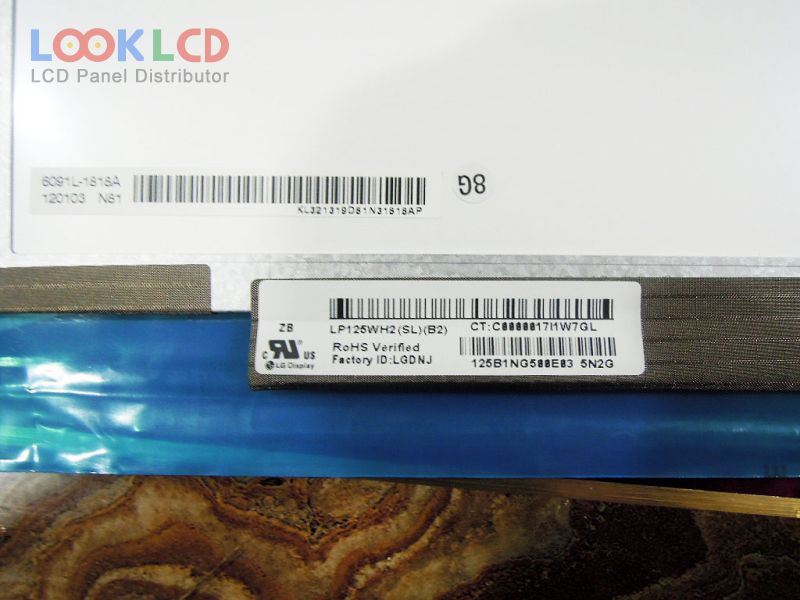

| Varenummer | LP125WH2-SLB2 |
| Mærke | LG Display |
| Størrelse | 12.5 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LP125WH2-SLB2 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.5 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 275.59×154.94 mm |
| omrids | 290.5×180.9×3.7 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Antiglare |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Min.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LP125WF1-SPA2 | LG Display | 12.5 | 1920×1080 |
| LP125WF1-SPD1 | LG Display | 12.5 | 1920×1080 |
| LP125WF2-SPB1 | LG Display | 12.5 | 1920×1080 |
| LP125WF2-SPB3 | LG Display | 12.5 | 1920×1080 |
| LP125WH2-SLB1 | LG Display | 12.5 | 1366×768 |
| LP125WH2-SLB2 | LG Display | 12.5 | 1366×768 |
| LP125WH2-SLT1 | LG Display | 12.5 | 1366×768 |
| LP125WH2-SPT1 | LG Display | 12.5 | 1366×768 |
| LP125WH2-TLD1 | LG Display | 12.5 | 1366×768 |
| LP125WH2-TLE1 | LG Display | 12.5 | 1366×768 |
| B170UW02 V0 | AUO | 17.0 | 1920×1200 |
| LP140WF6-SPB3 | LG Display | 14.0 | 1920×1080 |
| LP140WH4-TLN1 | LG Display | 14.0 | 1366×768 |
| LP154W01-TLA2 | LG Display | 15.4 | 1280×800 |
| LP154WE3-TLA1 | LG Display | 15.4 | 1680×1050 |
| LQ156D1JW02 | SHARP | 15.6 | 3840×2160 |
| LTM14C421F | TOSHIBA | 14.1 | 1024×768 |
| LTN133AT09-G02 | Samsung | 13.3 | 1280×800 |
| N164HGE-L12 | Innolux | 16.4 | 1920×1080 |
| N173HCE-E31 | Innolux | 17.3 | 1920×1080 |
