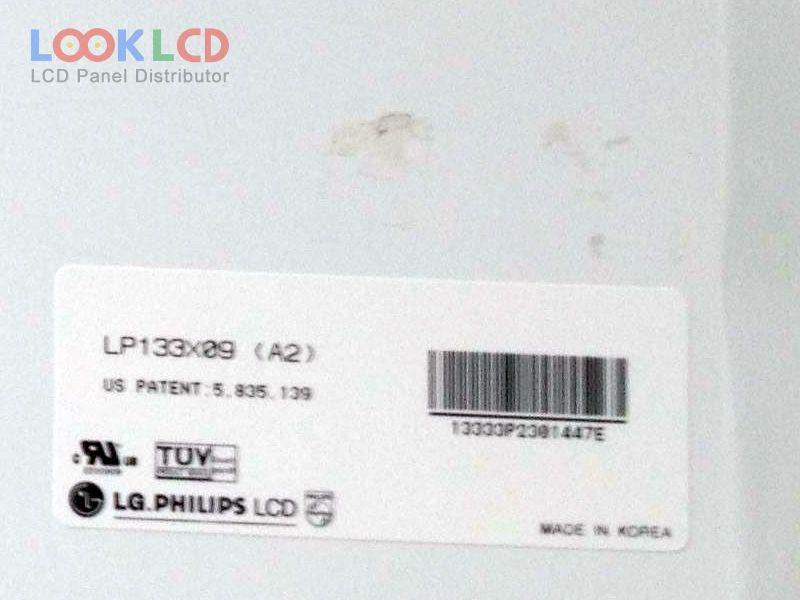

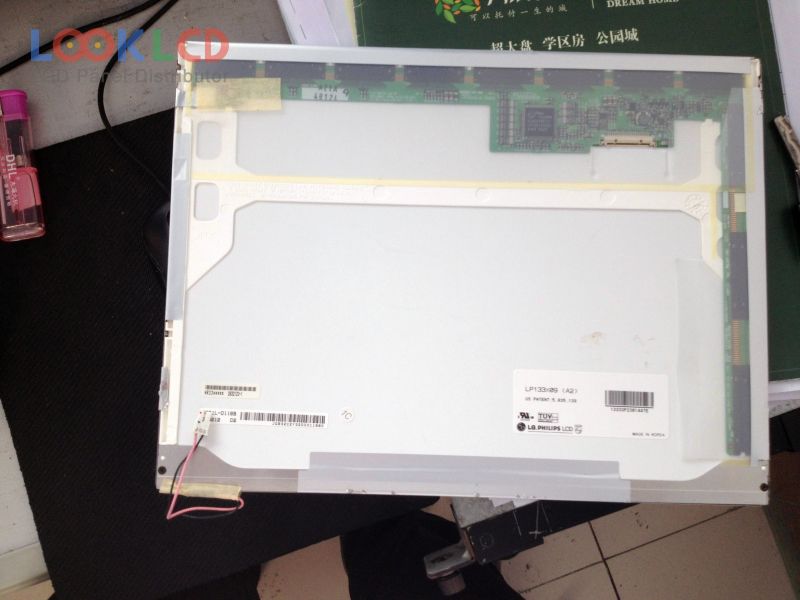

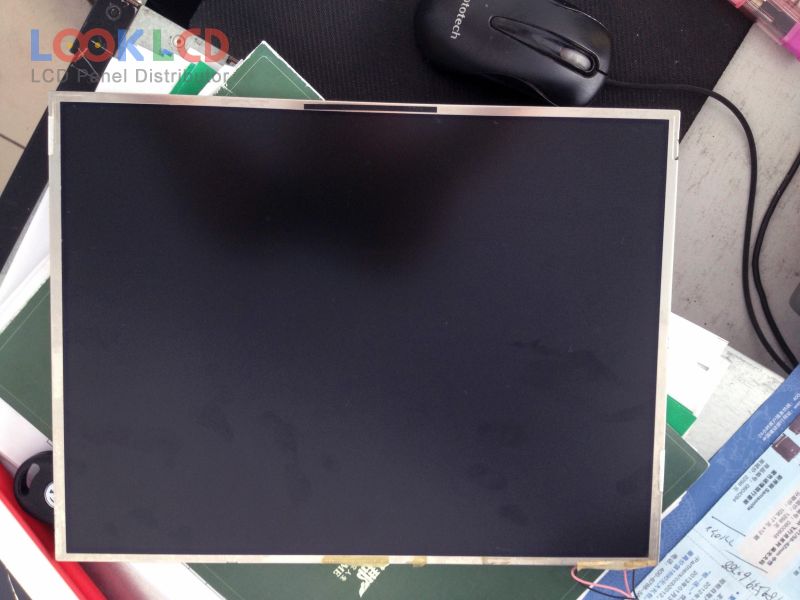

| Varenummer | LP133X09-A2 |
| Mærke | LG Display |
| Størrelse | 13.3 |
| Ansøgning | NBPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 160 |
| CR | 200:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | LG.Philips LCD |
| panel model | LP133X09-A2 6 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 13.3 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 270.336×202.752 mm |
| omrids | 284×214.5×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare (Haze 13%), Hard coating (3H) |
| lysstyrke | 160 cd/m² (Typ.) |
| kontrastforhold | 200:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 10/20 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
