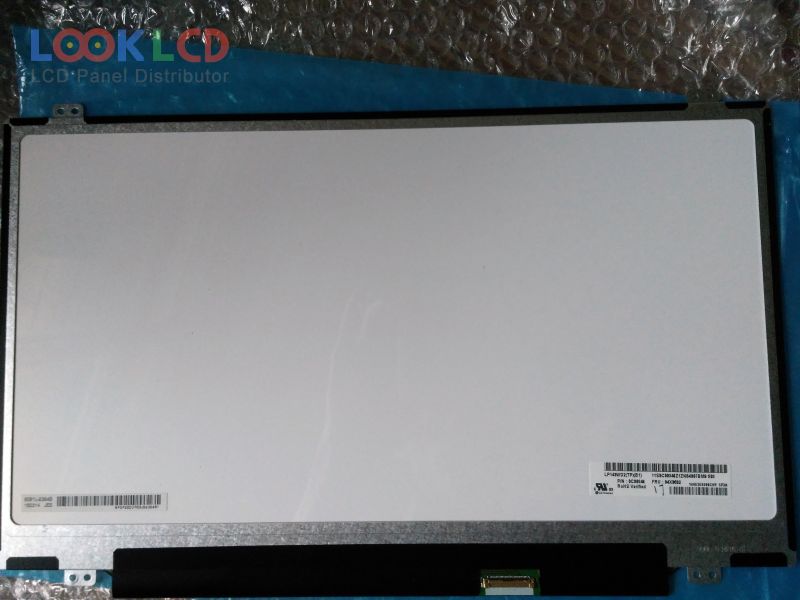

| Varenummer | LP140WD2-TPB1 |
| Mærke | LG Display |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1600×900 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | LG Display |
| panel model | LP140WD2-TPB1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1600(RGB)×900 , HD+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 309.12×173.88 mm |
| omrids | 320.4×187.1×3.6 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | eDP (1 Lane), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LP140WD2-TLB1 | LG Display | 14.0 | 1600×900 |
| LP140WD2-TLD2 | LG Display | 14.0 | 1600×900 |
| LP140WF1-SPK1 | LG Display | 14.0 | 1920×1080 |
| LP140WH1-TLD6 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TLE3 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLA2 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLL1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLM2 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLD1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLN1 | LG Display | 14.0 | 1366×768 |
| B140HAN01.2 | AUO | 14.0 | 1920×1080 |
| CLAA154WP05A | CPT | 15.4 | 1440×900 |
| HB140WX1-400 | BOE | 14.0 | 1366×768 |
| LP101WH2-TLA2 | LG Display | 10.1 | 1366×768 |
| LP140WD2-TPB1 | LG Display | 14.0 | 1600×900 |
| LTD121EW6S | TOSHIBA | 12.1 | 1280×800 |
| LTM10C348F | TOSHIBA | 10.4 | 800×600 |
| LTN154AT09-201 | Samsung | 15.4 | 1280×800 |
| LTN156AT01-V01 | Samsung | 15.6 | 1366×768 |
| TM150XG-02L11 | SANYO | 15.0 | 1024×768 |
