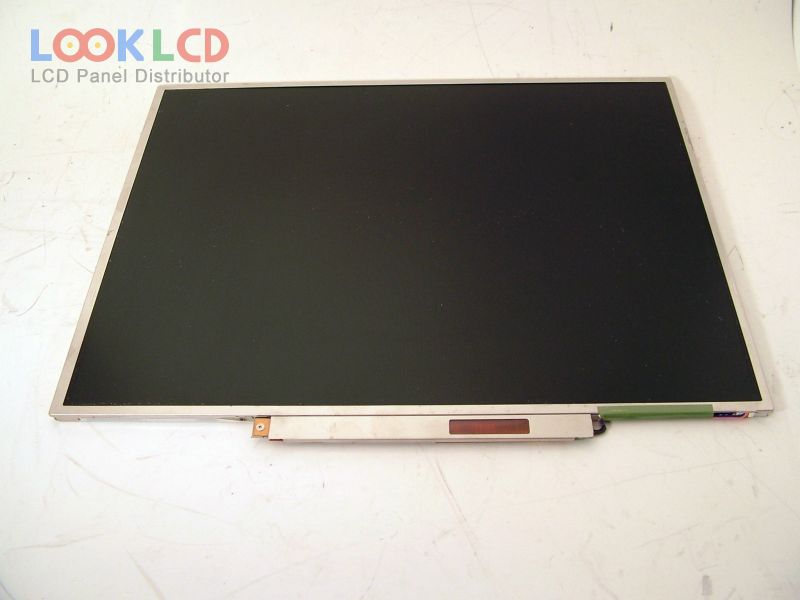

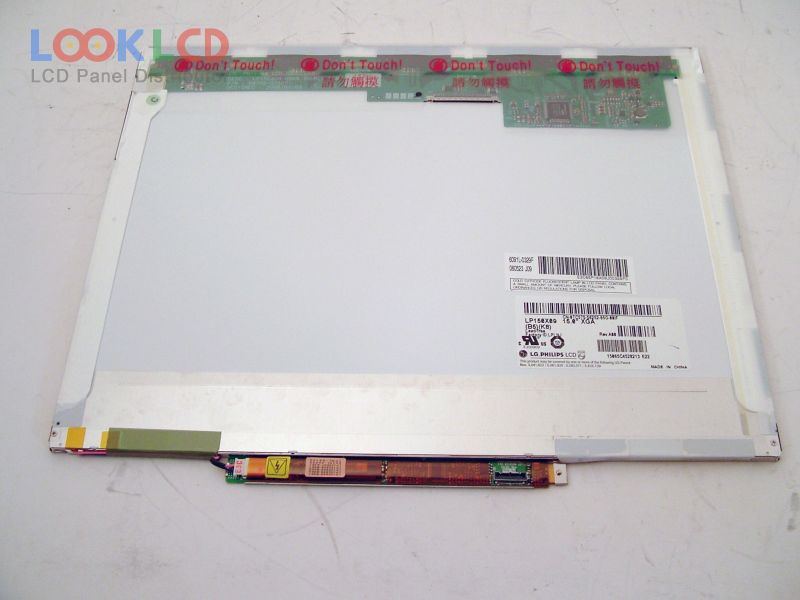

| Varenummer | LP150X09-B5K8 |
| Mærke | LG Display |
| Størrelse | 15.0 |
| Ansøgning | NBPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 180 |
| CR | 350:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |

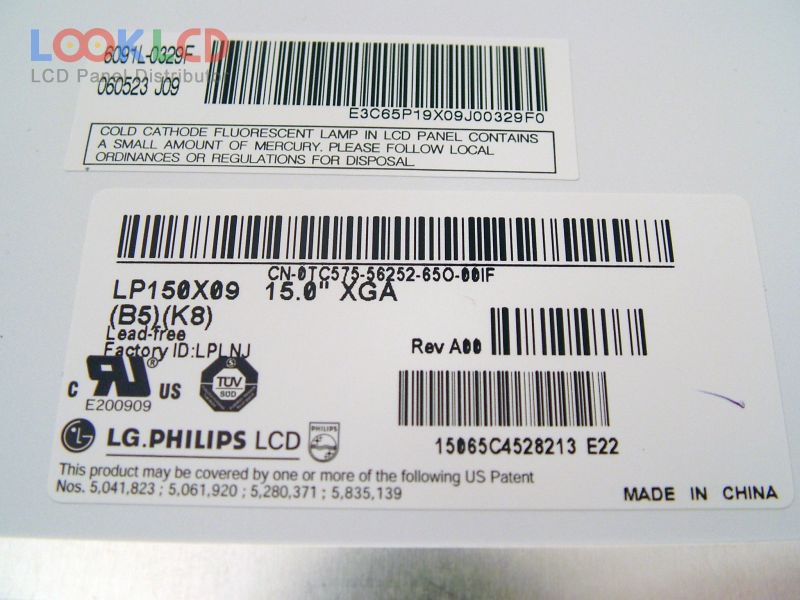

| panel mærke | LG.Philips LCD |
| panel model | LP150X09-B5K8 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.0 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 304.128×228.096 mm |
| omrids | 317.3×241.5×6 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 180 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Min.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
