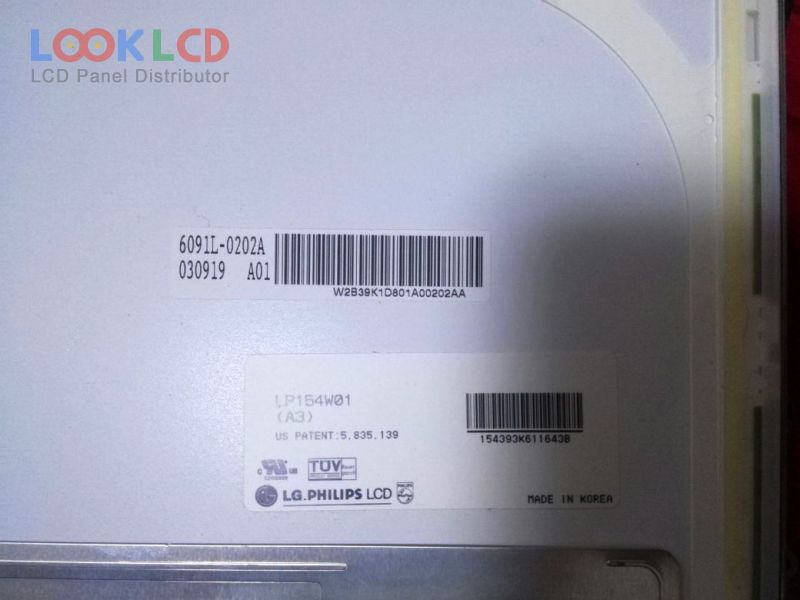

| Varenummer | LP154W01-A3 |
| Mærke | LG Display |
| Størrelse | 15.4 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 185 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | LG.Philips LCD |
| panel model | LP154W01-A3 16 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.4 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 331.2×207 mm |
| omrids | 344×243.5×6.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 185 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 60/60/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LP154W01-A3 | LG Display | 15.4 | 1280×800 |
| LP154W02-B1K2 | LG Display | 15.4 | 1680×1050 |
| LP154W02-TL10 | LG Display | 15.4 | 1680×1050 |
| LP154WE2-TLA7 | LG Display | 15.4 | 1680×1050 |
| LP154WE2-TLA8 | LG Display | 15.4 | 1680×1050 |
| LP154WP2-TLA2 | LG Display | 15.4 | 1440×900 |
| LP154WP3-TLA2 | LG Display | 15.4 | 1440×900 |
| LP154WX2-TL01 | LG Display | 15.4 | 1280×800 |
| LP154WX5-TLC2 | LG Display | 15.4 | 1280×800 |
| LP154WX7-TLB1 | LG Display | 15.4 | 1280×800 |
| B121EW03 V0 | AUO | 12.1 | 1280×800 |
| B121EW03 V9 | AUO | 12.1 | 1280×800 |
| B140XTN02.4 | AUO | 14.0 | 1366×768 |
| B141EW05 V5 | AUO | 14.1 | 1280×800 |
| LP140WD2-TLD2 | LG Display | 14.0 | 1600×900 |
| LP154WE3-TLA2 | LG Display | 15.4 | 1680×1050 |
| LTN134AT01-001 | Samsung | 13.4 | 1366×768 |
| LTN156AT02-D03 | Samsung | 15.6 | 1366×768 |
| N141I1-L04 | Innolux | 14.1 | 1280×800 |
| N154I4-L03 | Innolux | 15.4 | 1280×800 |
