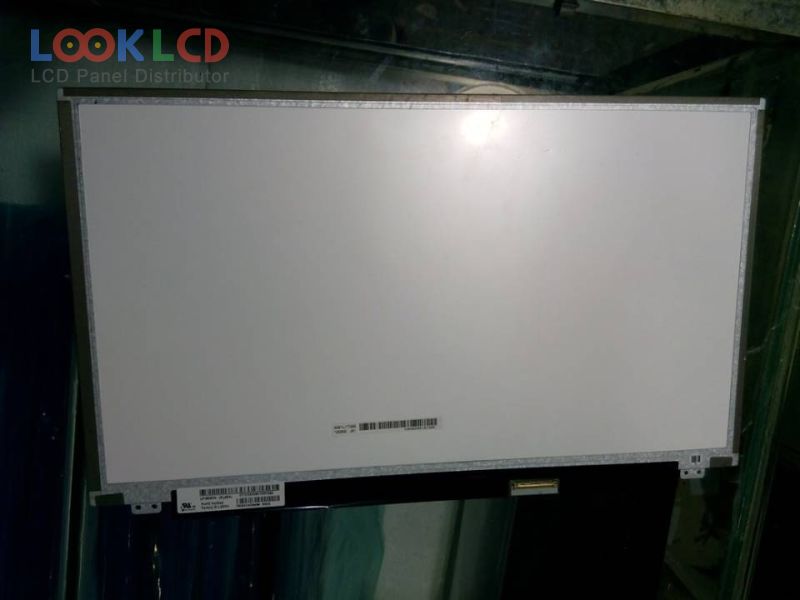

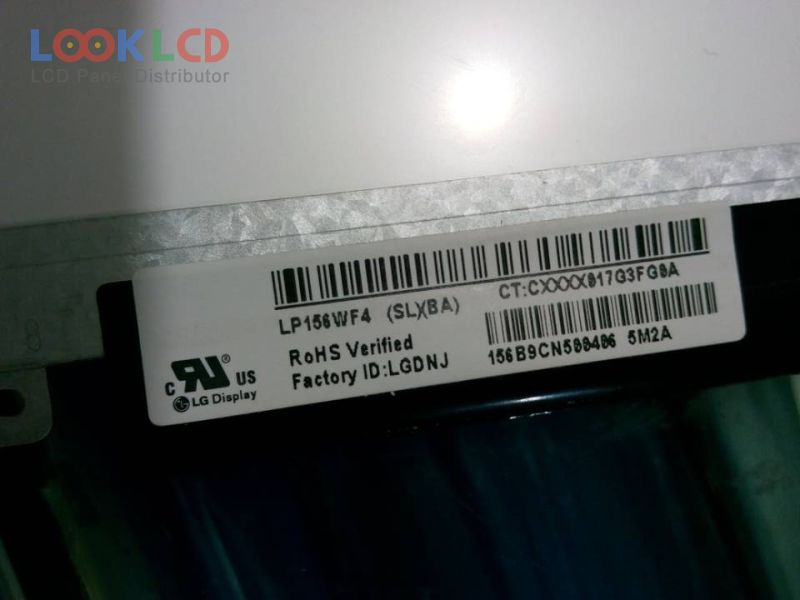

| Varenummer | LP156WF4-SLBA |
| Mærke | LG Display |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LP156WF4-SLBA 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | AH-IPS, Normally Black, Transmissive |
| aktivt område | 344.16×193.59 mm |
| omrids | 359.5×218.53×3.4 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Min.) |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6 stringsWLEDEmbedded (LED Driver) |

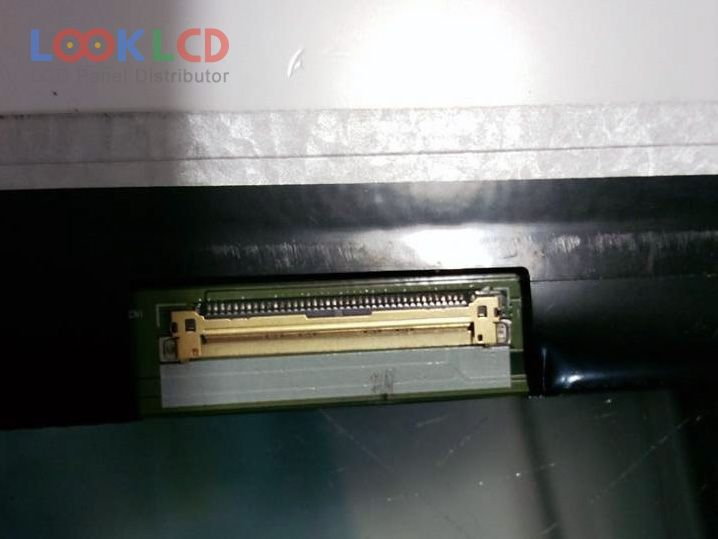

| signal interface | LVDS (2 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
