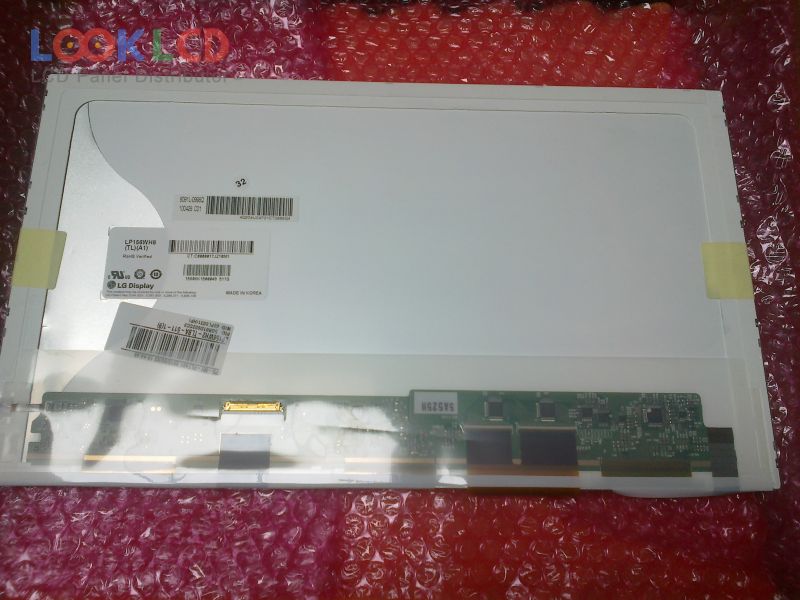

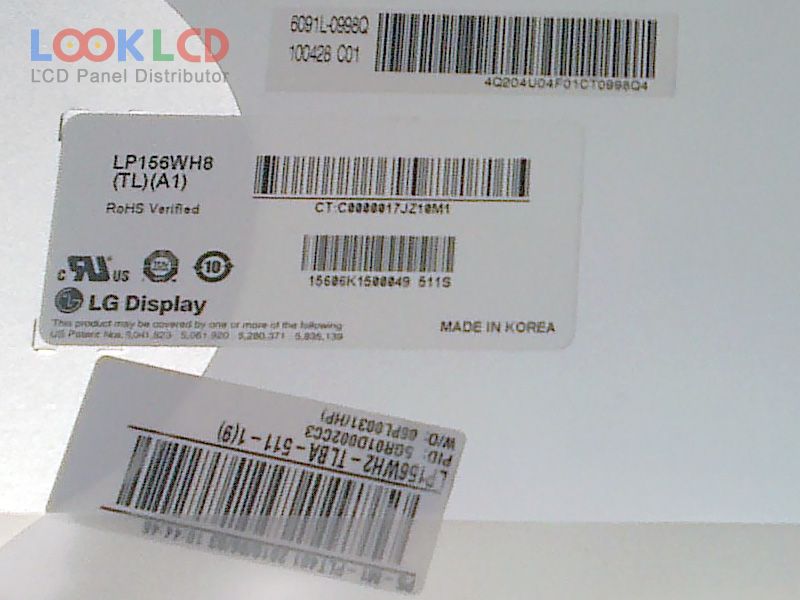

| Varenummer | LP156WH8-TLA1 |
| Mærke | LG Display |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LP156WH8-TLA1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 344.232×193.536 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | |
| lysstyrke | |
| kontrastforhold | |
| vise farver | 262K (6-bit) |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | WLED |
| signal interface | LVDS (1 ch, 6-bit) |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
