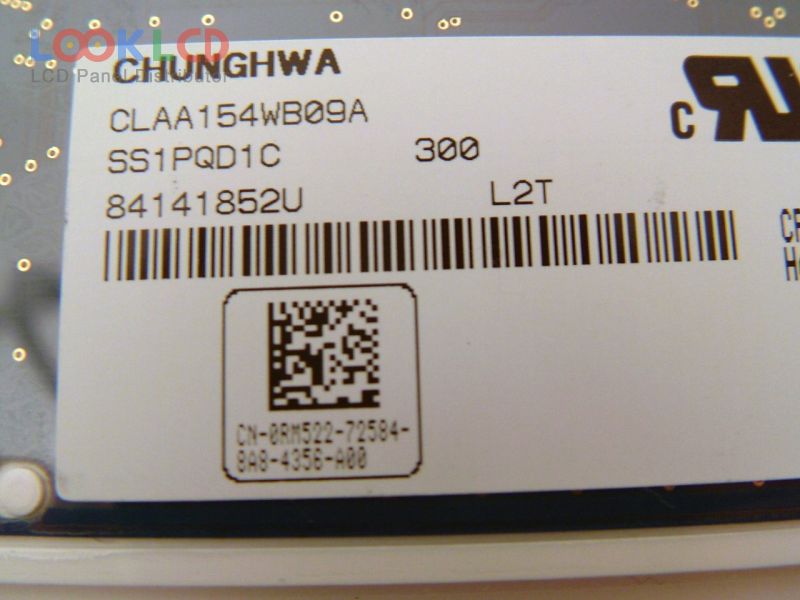

| Varenummer | CLAA154WB09A |
| Mærke | CPT |
| Størrelse | 15.4 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | CPT |
| panel model | CLAA154WB09A |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.4 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | Transmissive |
| aktivt område | 331.2×207 mm |
| omrids | 344.5×222.5 mm |
| overflade | |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 8 (Typ.)(Tr+Td) |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFL |
| signal interface | LVDS (1 ch, 6-bit) |
| rohs: | |
| Ansøgning | NBPC |
