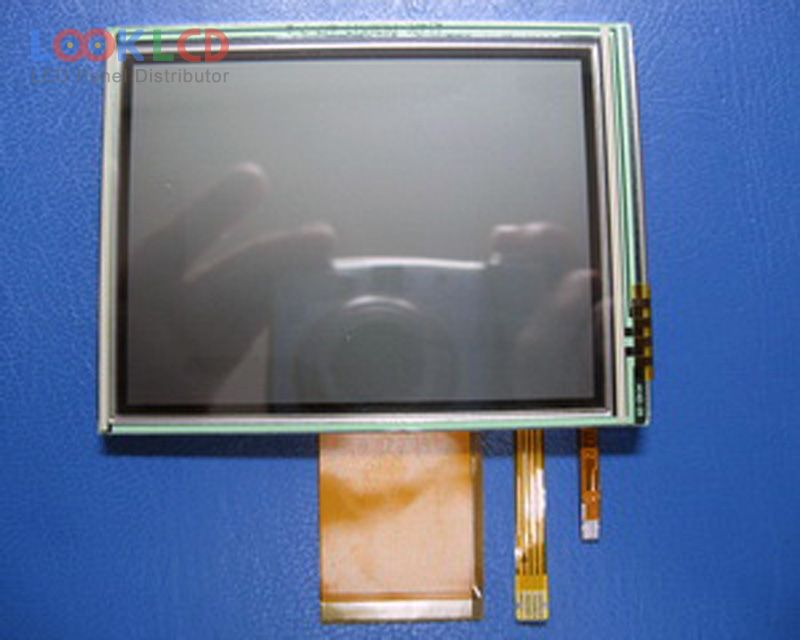

| Varenummer | LQ035Q7DB04 |
| Mærke | SHARP |
| Størrelse | 3.5 |
| Ansøgning | |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 50 |
| CR | 70:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ035Q7DB04 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 53.64×71.52 mm |
| omrids | 65×85×4.8 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 50 cd/m² (Typ.) |
| kontrastforhold | 70:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit) |
| responstid | 60/100 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 50 pins |
| indgangsspænding | 5.0/3.3/15.0/-10.0V (Typ.)(VSGA/VSHD/VDD/VEE) |
