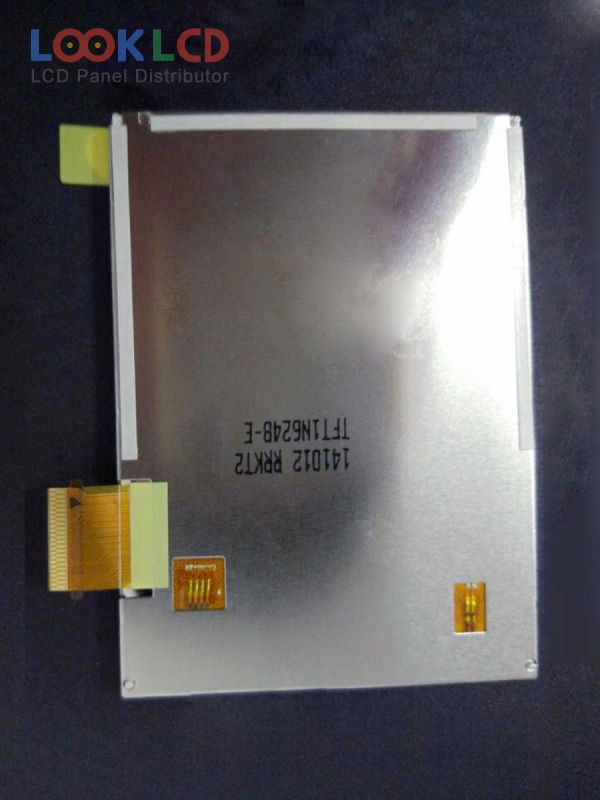

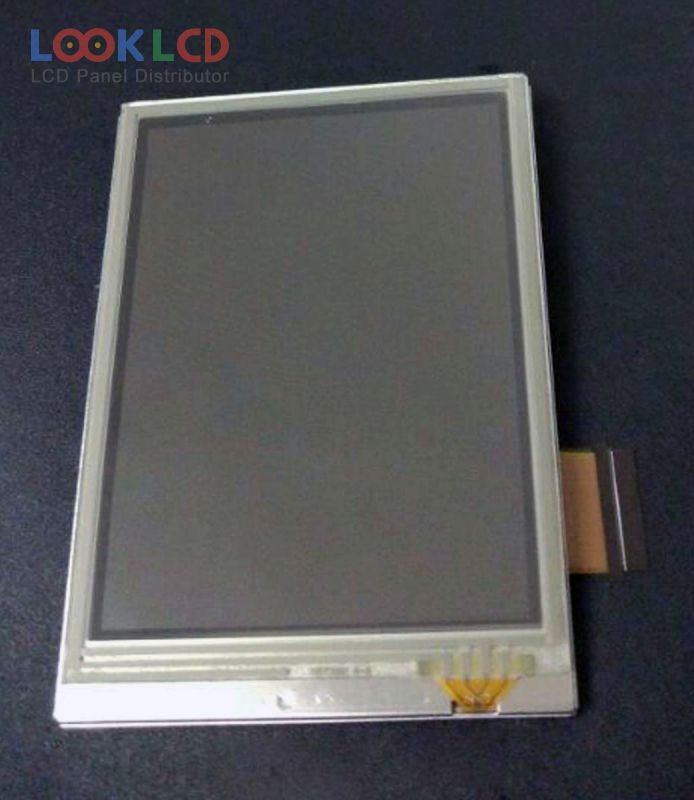

| Varenummer | TFT1N6248-E |
| Mærke | Other |
| Størrelse | 3.2 |
| Ansøgning | |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 80 |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | TRULY |
| panel model | TFT1N6248-E |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.2 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 48.6×64.8 mm |
| omrids | 57.54×79.2 mm |
| overflade | |
| lysstyrke | 80 cd/m² (Typ.) |
| kontrastforhold | |
| vise farver | 262K (6-bit) |
| responstid | 48 (Typ.)(Tr+Td) |
| synsvinkel | 34/45/80/42 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit) + SPI, 45 pins |
| indgangsspænding | 2.8V (Typ.) |
