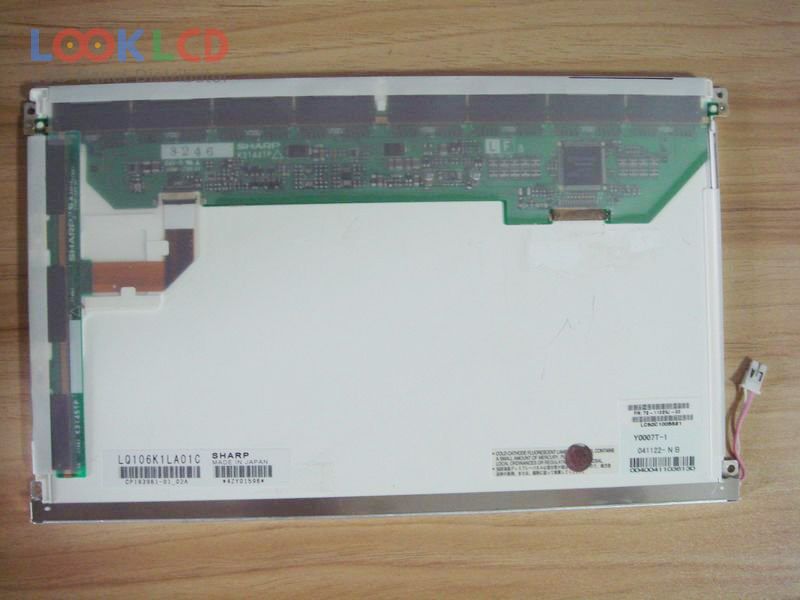

| Varenummer | LQ106K1LA01C |
| Mærke | SHARP |
| Størrelse | 10.6 |
| Ansøgning | NBPC |
| Løsning | 1280×768 |
| Sammensætning | LCM |
| Lysstyrke | 240 |
| CR | 350:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SHARP |
| panel model | LQ106K1LA01C |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.6 inch |
| løsning | 1280(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 230.4×138.24 mm |
| omrids | 242.4×152 mm |
| overflade | Glare (Haze 0%), Hard coating (2H) |
| lysstyrke | 240 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 14 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
