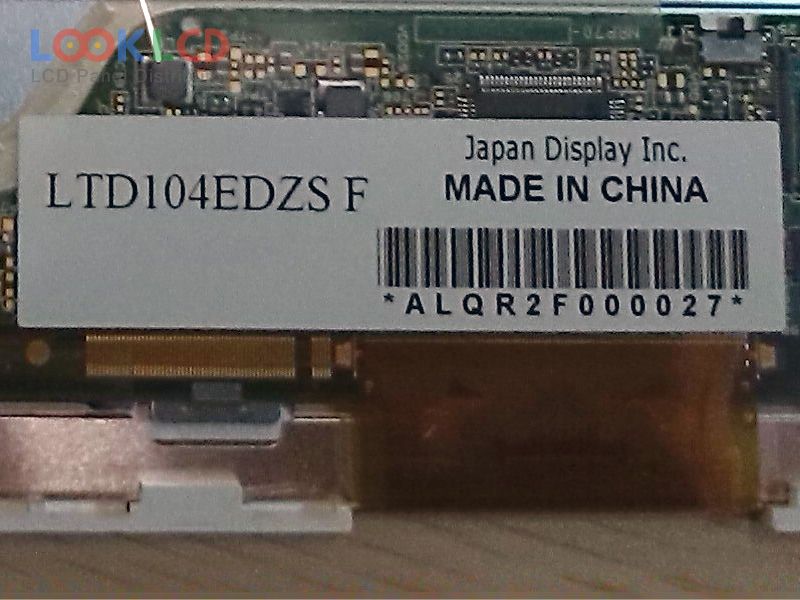

| Varenummer | LTD104EDZS |
| Mærke | TOSHIBA |
| Størrelse | 10.4 |
| Ansøgning | NBPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 245 |
| CR | 250:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | Toshiba Matsushita |
| panel model | LTD104EDZS |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 210.4×157.8 mm |
| omrids | 219.1×173.8×6.3 mm |
| overflade | Antiglare |
| lysstyrke | 245 cd/m² (Typ.) |
| kontrastforhold | 250:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 40/40 (Max.)(Tr/Td) |
| synsvinkel | |
| lampe type | 9S4PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 25 pins |
| indgangsspænding | 3.3V (Typ.) |
| rohs: | |
| Ansøgning | NBPC |
