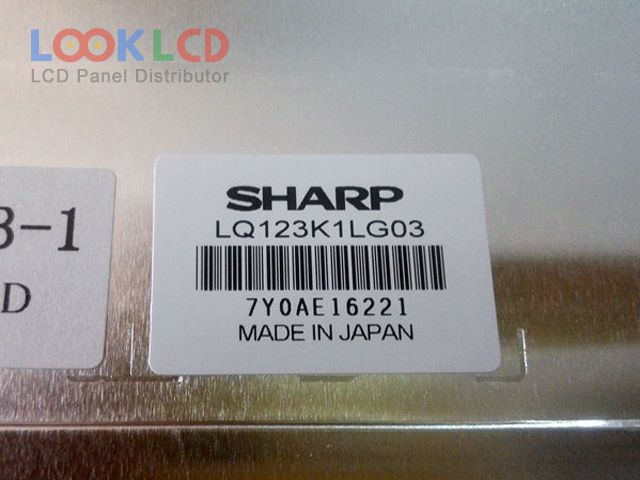

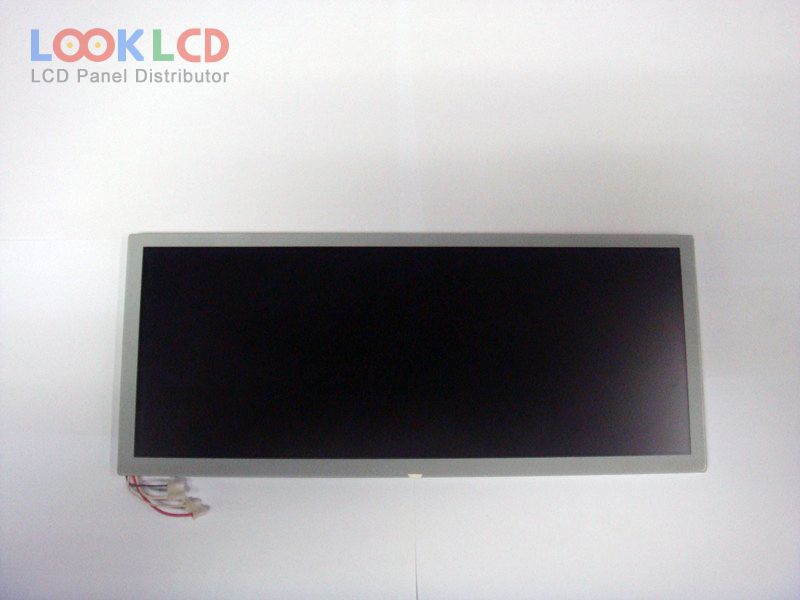

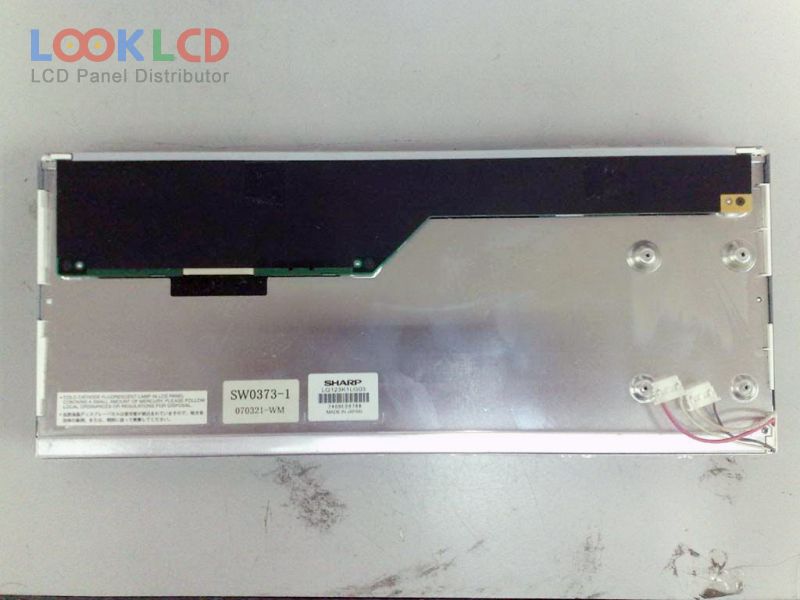

| Varenummer | LQ123K1LG03 |
| Mærke | SHARP |
| Størrelse | 12.3 |
| Ansøgning | GM |
| Løsning | 1280×480 |
| Sammensætning | LCM |
| Lysstyrke | 330 |
| CR | 400:1 |
| Farver | 16.2M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SHARP |
| panel model | LQ123K1LG03 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.3 inch |
| løsning | 1280(RGB)×480 , DVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 291.84×109.44 mm |
| omrids | 312.4×130.4 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 330 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC), CIE193172% |
| responstid | 35 (Typ.)(Tr+Td); 10 (Typ.)(G to G) |
| synsvinkel | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 2 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (1 ch, 8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | GM |
| A141EW01 V0 | AUO | 14.1 | 1280×800 |
| G104X1-L01 | Innolux | 10.4 | 1024×768 |
| G190EG01 V1 | AUO | 19.0 | 1280×1024 |
| G220SVN01.0 | AUO | 22.0 | 1680×1050 |
| LM265SQ1-SLA1 | LG Display | 26.5 | 1920×1920 |
| LQ121S1LG51 | SHARP | 12.1 | 800×600 |
| LQ121S1LG55 | SHARP | 12.1 | 800×600 |
| LQ121S1LG75 | SHARP | 12.1 | 800×600 |
| LQ150X1LG96 | SHARP | 15.0 | 1024×768 |
| LV057JC111 | Innolux | 5.7 | 640×480 |
