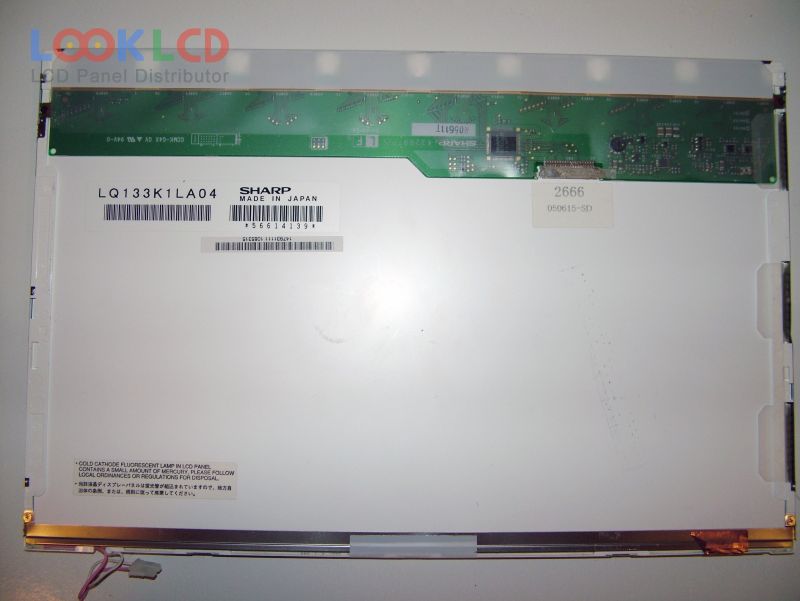

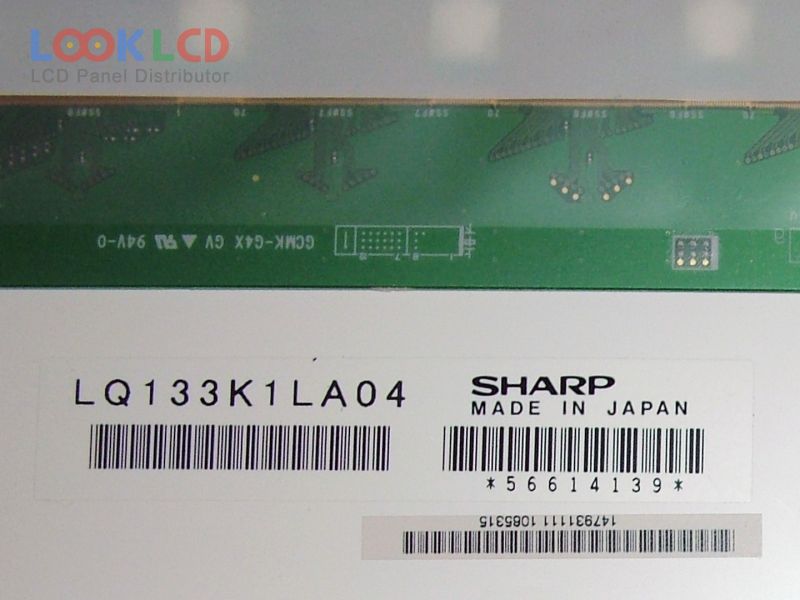

| Varenummer | LQ133K1LA04 |
| Mærke | SHARP |
| Størrelse | 13.3 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SHARP |
| panel model | LQ133K1LA04 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 13.3 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 286.08×178.8 mm |
| omrids | 299×195×5.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (2H), Antireflection |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Min.) |
| vise farver | 262K (6-bit) |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B133XTN01.5 | AUO | 13.3 | 1366×768 |
| LP133WP1-TJA1 | LG Display | 13.3 | 1440×900 |
| LQ133K1LA04 | SHARP | 13.3 | 1280×800 |
| LQ133K1LA4A | SHARP | 13.3 | 1280×800 |
| LQ133K1LD4B | SHARP | 13.3 | 1280×800 |
| LQ133M1JW03 | SHARP | 13.3 | 1920×1080 |
| LQ133T1JW01 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW02 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW19 | SHARP | 13.3 | 2560×1440 |
| LTN133AT05-S02 | Samsung | 13.3 | 1280×800 |
| B116XTB01.0 | AUO | 11.6 | 1366×768 |
| B133XW03 V2 | AUO | 13.3 | 1366×768 |
| B133XW04 V0 | AUO | 13.3 | 1366×768 |
| CLAA154WA01 | CPT | 15.4 | 1280×800 |
| LP133X7-H2CC | LG Display | 13.3 | 1024×768 |
| LP154WX5-TLA1 | LG Display | 15.4 | 1280×800 |
| LP171WU1-TLA2 | LG Display | 17.1 | 1920×1200 |
| LTN156FL01-D01 | Samsung | 15.6 | 3840×2160 |
| N141XC-L02 | Innolux | 14.1 | 1024×768 |
| N156BGE-L21 | Innolux | 15.6 | 1366×768 |
