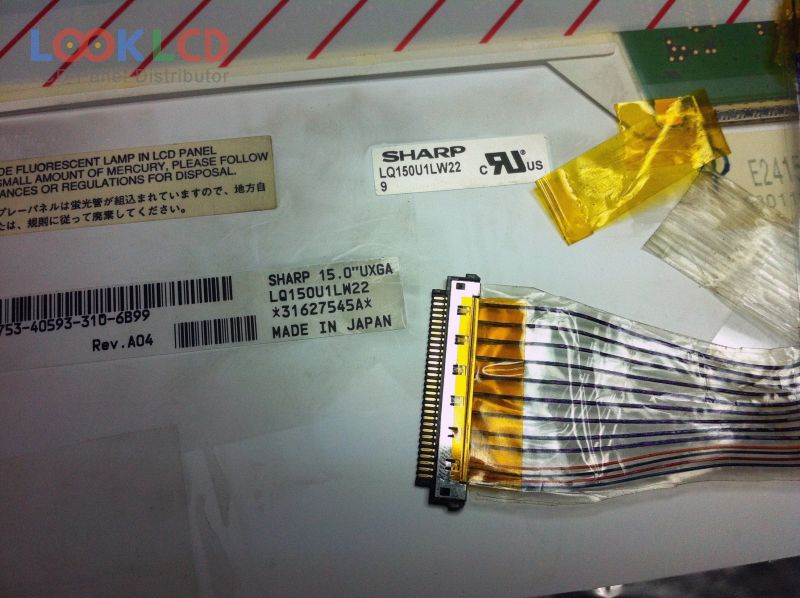

| Varenummer | LQ150U1LW22 |
| Mærke | SHARP |
| Størrelse | 15.0 |
| Ansøgning | NBPC |
| Løsning | 1600×1200 |
| Sammensætning | LCM |
| Lysstyrke | 180 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SHARP |
| panel model | LQ150U1LW22 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.0 inch |
| løsning | 1600(RGB)×1200 , UXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 304×228 mm |
| omrids | 317.3×242×7 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare, Hard coating (2H), Reflection 1.7% (Max.) |
| lysstyrke | 180 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 9/16 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (2 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
