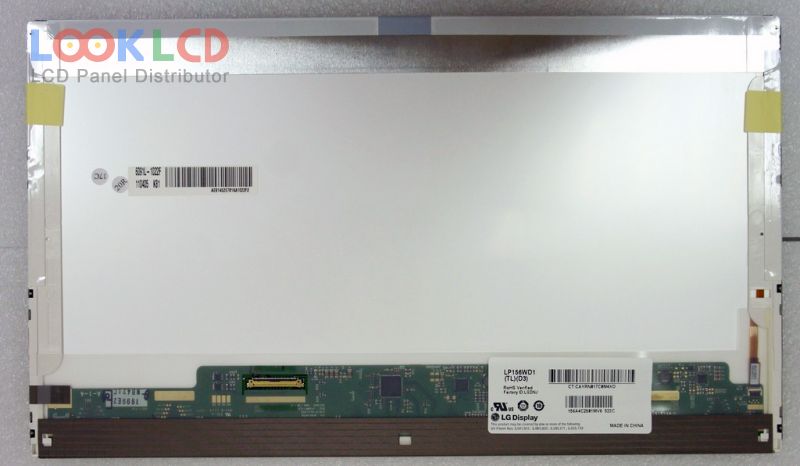

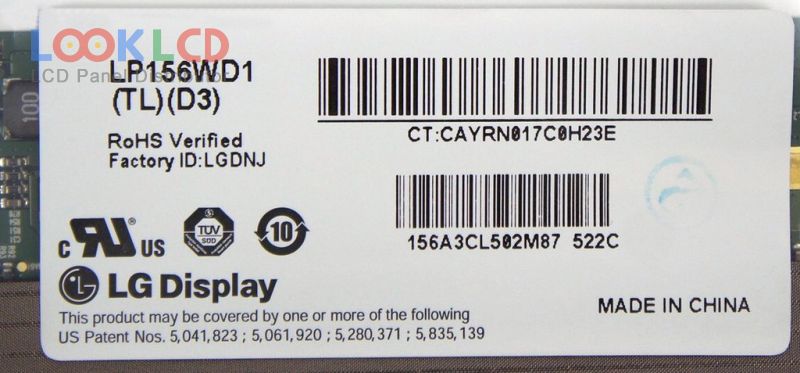

| Varenummer | LP156WD1-TLD3 |
| Mærke | LG Display |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1600×900 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LP156WD1-TLD3 10 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1600(RGB)×900 , HD+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 344.16×193.59 mm |
| omrids | 359.3×209.5×5.7 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Min.) |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | 8 (Typ.)(Tr+Td) |
| synsvinkel | 60/60/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LP156WD1-TLD5 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TLB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF3-SLB3 | LG Display | 15.6 | 1920×1080 |
| LP156WF6-SPH3 | LG Display | 15.6 | 1920×1080 |
| LP156WH1-TLC2 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN2 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TPA1 | LG Display | 15.6 | 1366×768 |
| LP156WH8-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WHB-TLA1 | LG Display | 15.6 | 1366×768 |
| B133XTN01.6 HW1A | AUO | 13.3 | 1366×768 |
| B140EW01 V5 | AUO | 14.0 | 1280×768 |
| CLAA156WA07A | CPT | 15.6 | 1366×768 |
| LP140WD1-TLM1 | LG Display | 14.0 | 1600×900 |
| LP140WH8-TLA1 | LG Display | 14.0 | 1366×768 |
| LP150X09-B2K3 | LG Display | 15.0 | 1024×768 |
| LTD121LA3SG-201 | TOSHIBA | 12.1 | 1024×768 |
| LTN133AT01-001 | Samsung | 13.3 | 1280×800 |
| LTN156AT05-W01 | Samsung | 15.6 | 1366×768 |
| VVX13F009G10 | Panasonic | 13.3 | 1920×1080 |
