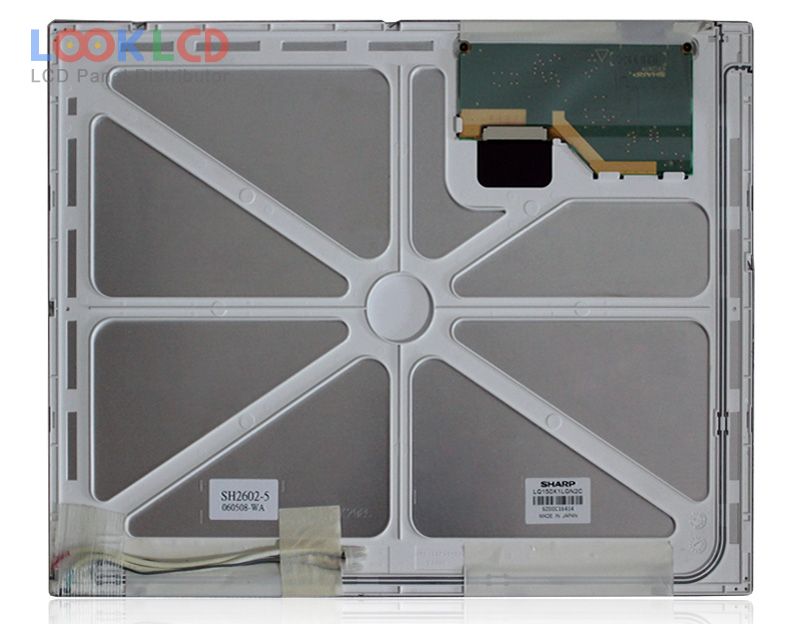

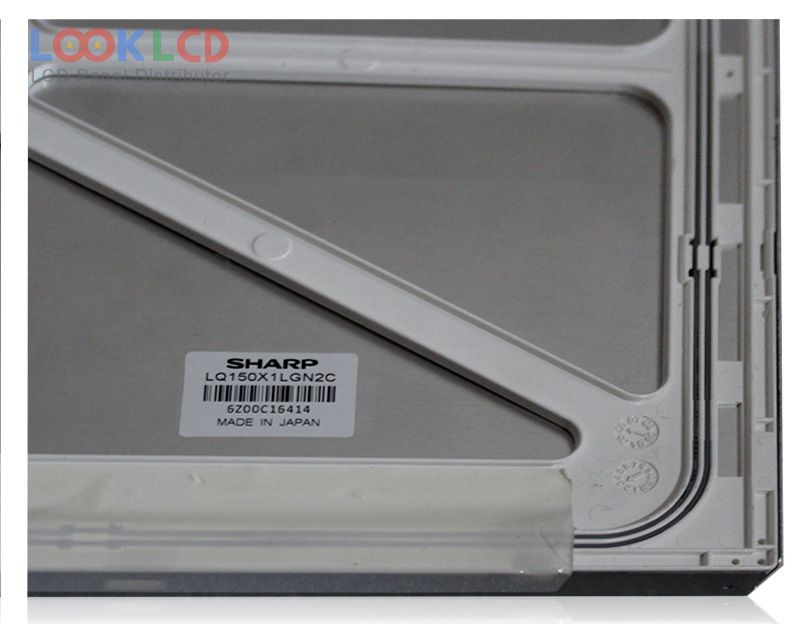

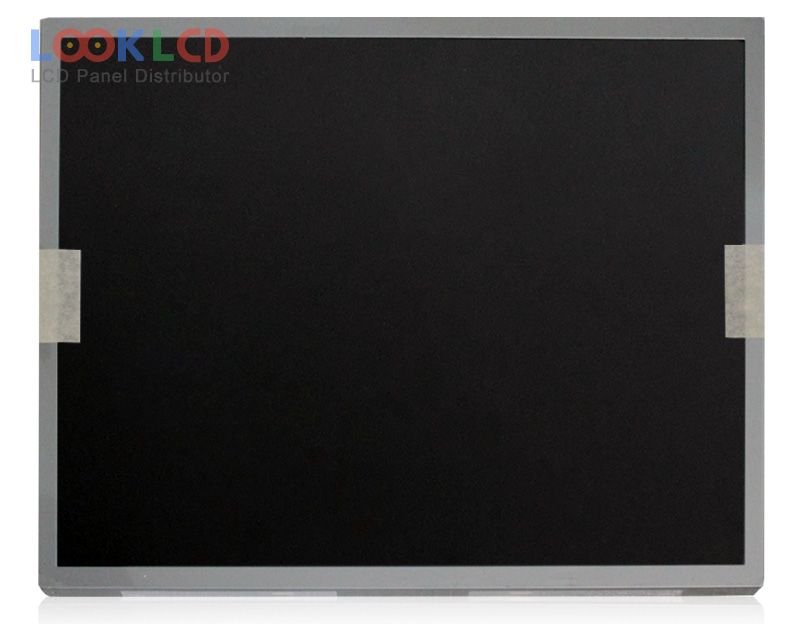

| Varenummer | LQ150X1LGN2C |
| Mærke | SHARP |
| Størrelse | 15.0 |
| Ansøgning | |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 260 |
| CR | 350:1 |
| Farver | 16.2M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SHARP |
| panel model | LQ150X1LGN2C |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.0 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 304.128×228.096 mm |
| omrids | 326×252×11.5 mm |
| overflade | Antiglare (Haze 28%), Hard coating (2H) |
| lysstyrke | 260 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC) |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 60/60/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
