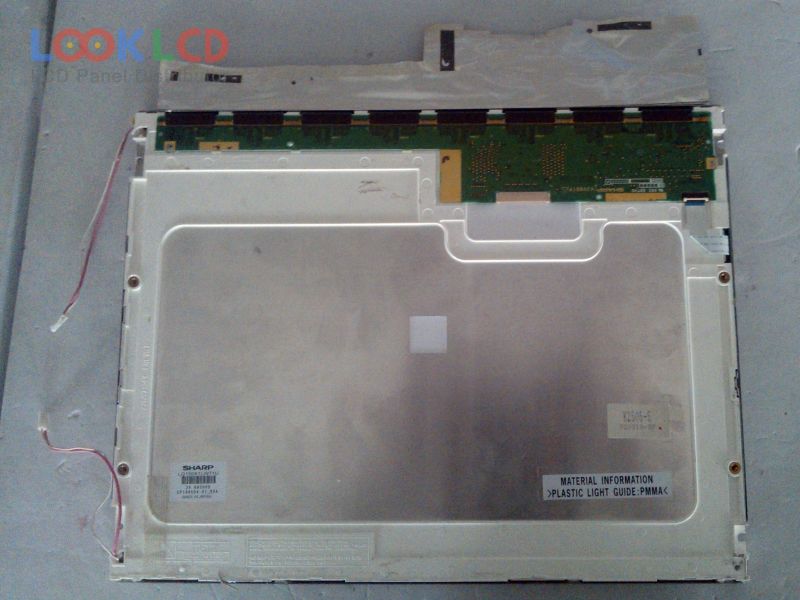

| Varenummer | LQ150X1LW71U |
| Mærke | SHARP |
| Størrelse | 15.0 |
| Ansøgning | |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 400:1 |
| Farver | |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SHARP |
| panel model | LQ150X1LW71U |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.0 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | ASV, Normally Black, Transmissive |
| aktivt område | 304.128×228.096 mm |
| omrids | 331.6×254.76 mm |
| overflade | |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | |
| responstid | |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFL |
| signal interface | LVDS (1 ch, 8-bit) |
| indgangsspænding | 3.3V (Typ.) |
| rohs: |
