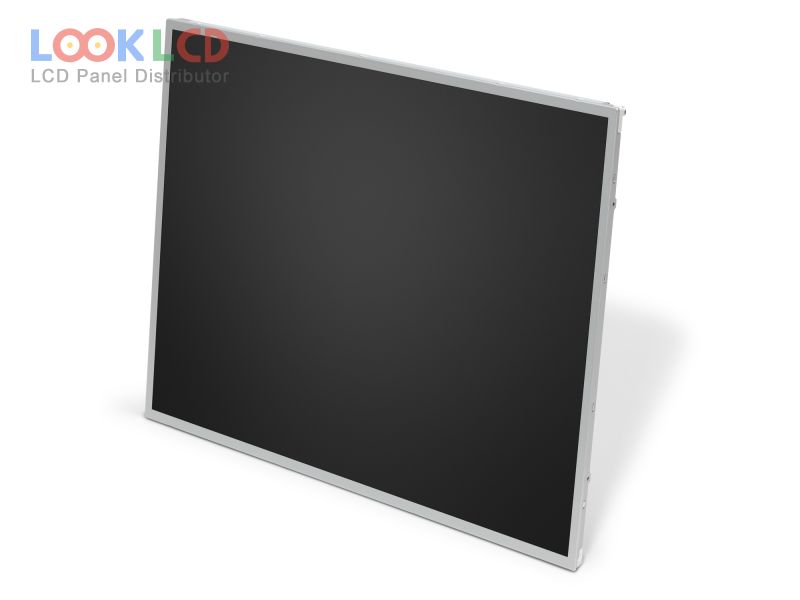

| Varenummer | LQ190E1LX75 |
| Mærke | SHARP |
| Størrelse | 19.0 |
| Ansøgning | GM |
| Løsning | 1280×1024 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 1500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SHARP |
| panel model | LQ190E1LX75 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 19.0 inch |
| løsning | 1280(RGB)×1024 , SXGA |
| visningstilstand | ASV, Normally Black, Transmissive |
| aktivt område | 376.32×301.056 mm |
| omrids | 396×323.7×12 mm |
| overflade | Antiglare (Haze 3%), Hard coating (3H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 1500:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193176% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | GM |
