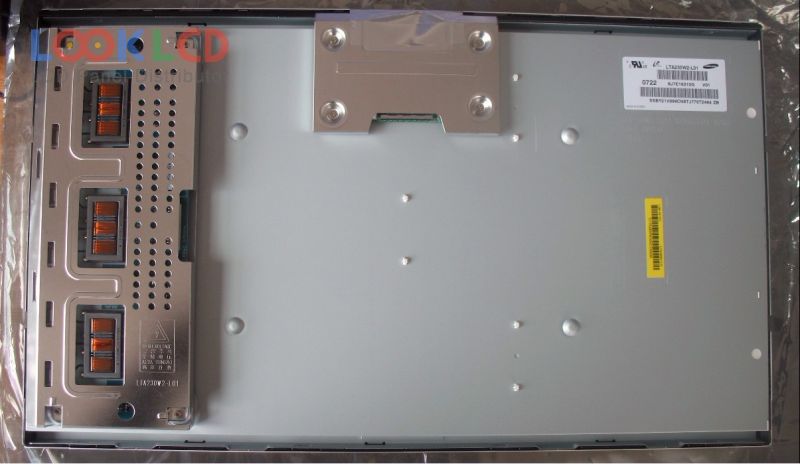

| Varenummer | LTA230W2-L01 |
| Mærke | Samsung |
| Størrelse | 23.0 |
| Ansøgning | LCTV |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 1200:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTA230W2-L01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 23.0 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | PVA, Normally Black, Transmissive |
| aktivt område | 508.125×285.696 mm |
| omrids | 546×318.3 mm |
| overflade | Antiglare (Haze 44%), Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 1200:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 16/9 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | LCTV |
| LC320DXE-SFR1 | LG Display | 31.5 | 1366×768 |
| LC370EUH-SCA1 | LG Display | 37 | 1920×1080 |
| LC420EUJ-SFK2 | LG Display | 42 | 1920×1080 |
| LC420EUN-SFF1 | LG Display | 42 | 1920×1080 |
| LC650EQF-FJM1 | LG Display | 65 | 3840×2160 |
| LTA570HH-LH2 | Samsung | 57 | 1920×1080 |
| LTJ460HN01-H | Samsung | 46 | 1920×1080 |
| T320XVN02.0 | AUO | 31.5 | 1366×768 |
| V400HJ6-LE8 | Innolux | 40 | 1920×1080 |
| V850DK1-KD1 Rev.B1 | Innolux | 85 | 3840×2160 |
