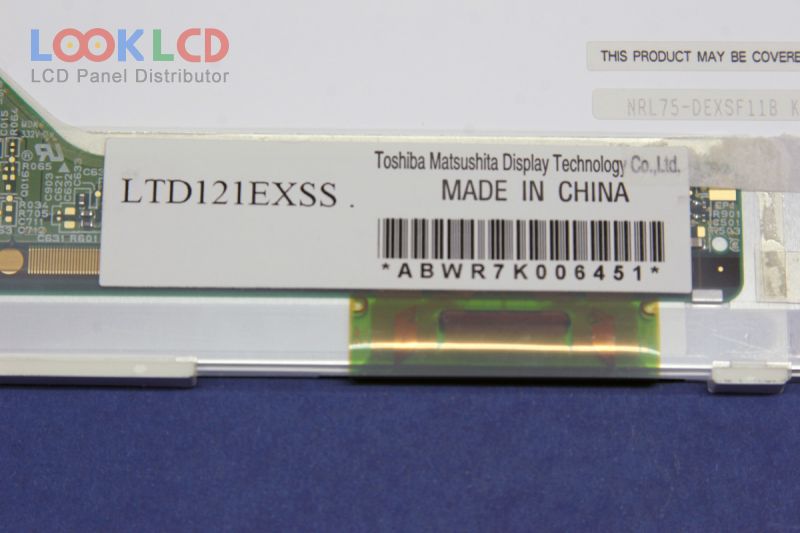

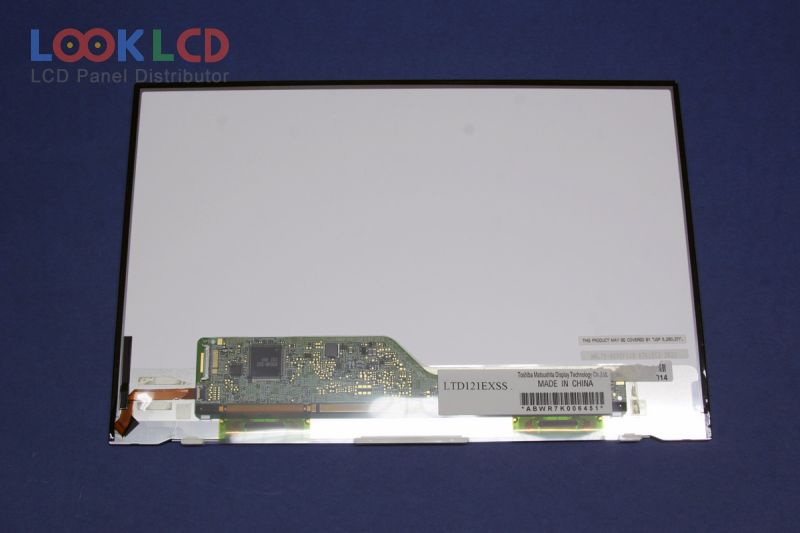

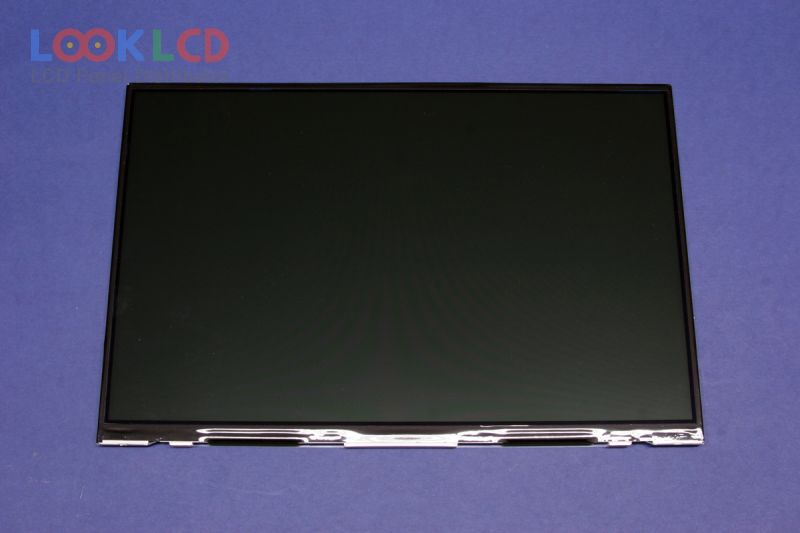

| Varenummer | LTD121EXSS |
| Mærke | TOSHIBA |
| Størrelse | 12.1 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 250:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | Toshiba Matsushita |
| panel model | LTD121EXSS |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 261.12×163.2 mm |
| omrids | 275.8×180×4.6 mm |
| overflade | Glare (Haze 0%), Antireflection |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 250:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 40/40 (Max.)(Tr/Td) |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | 6 stringsWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LTD121C31S | TOSHIBA | 12.1 | 800×600 |
| LTD121C33U | TOSHIBA | 12.1 | 800×600 |
| LTD121EA3KZ | TOSHIBA | 12.1 | 1024×768 |
| LTD121EA4G | TOSHIBA | 12.1 | 1024×768 |
| LTD121EA4X | TOSHIBA | 12.1 | 1024×768 |
| LTD121EC5S | TOSHIBA | 12.1 | 1024×768 |
| LTD121EDFN | TOSHIBA | 12.1 | 1024×768 |
| LTD121EW7V | TOSHIBA | 12.1 | 1280×800 |
| LTD121EX1R | TOSHIBA | 12.1 | 1280×768 |
| LTD121EXED | TOSHIBA | 12.1 | 1280×800 |
| B141EW05 V5 | AUO | 14.1 | 1280×800 |
| B156XW03 V1 | AUO | 15.6 | 1366×768 |
| LP140WD1-TLD2 | LG Display | 14.0 | 1600×900 |
| LP140WF3-SPD1 | LG Display | 14.0 | 1920×1080 |
| LP154WX5-TLB2 | LG Display | 15.4 | 1280×800 |
| LP173WF2-TPB1 | LG Display | 17.3 | 1920×1080 |
| LTN150XB-L02 | Samsung | 15.0 | 1024×768 |
| LTN156AT05-S01 | Samsung | 15.6 | 1366×768 |
| LTN156KT02-301 | Samsung | 15.6 | 1600×900 |
| N173HGE-L11 | Innolux | 17.3 | 1920×1080 |
