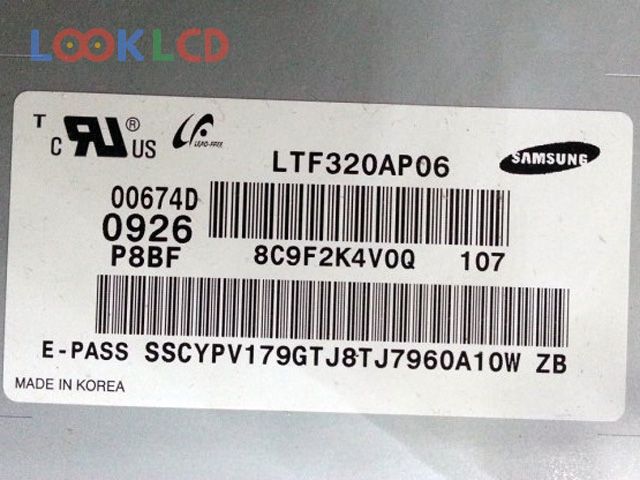

| Varenummer | LTF320AP06 |
| Mærke | Samsung |
| Størrelse | 31.5 |
| Ansøgning | LCTV |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 5000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTF320AP06 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 31.5 inch |
| løsning | 1366×768(RGB) , WXGA |
| visningstilstand | PVA, Normally Black, Transmissive |
| aktivt område | 697.685×392.256 mm |
| omrids | 760×450 mm |
| overflade | Antiglare (Haze 7%), Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 5000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 8 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
| AX080A080G | KOE | 31.5 | 1366×768 |
| LC320EXN-FEP1 | LG Display | 31.5 | 1366×768 |
| LC320EXN-SEA3 | LG Display | 31.5 | 1366×768 |
| LC320TU2A | PANDA | 31.5 | 1366×768 |
| LC320WXN-SCB1 | LG Display | 31.5 | 1366×768 |
| LK315D3LA4S | SHARP | 31.5 | 1920×1080 |
| LTF320AP06 | Samsung | 31.5 | 1366×768 |
| LTF320AP08 | Samsung | 31.5 | 1366×768 |
| LTF320AP11 | Samsung | 31.5 | 1366×768 |
| LTF320HM01 | Samsung | 31.5 | 1920×1080 |
| HV550WUP-200 | BOE | 55 | 1920×1080 |
| LC260EXN-SCA1 | LG Display | 26.0 | 1366×768 |
| LC370WUG-SCA2 | LG Display | 37 | 1920×1080 |
| LC420WUE-SCA2 | LG Display | 42 | 1920×1080 |
| LC550EUD-SEF3 | LG Display | 55 | 1920×1080 |
| LC550EUE-SEU1 | LG Display | 55 | 1920×1080 |
| T370HW02 V4 | AUO | 37 | 1920×1080 |
| T420HW04 V0 | AUO | 42 | 1920×1080 |
| T420XW01 V8 | AUO | 42 | 1366×768 |
| T460HW03 V1 | AUO | 46 | 1920×1080 |
