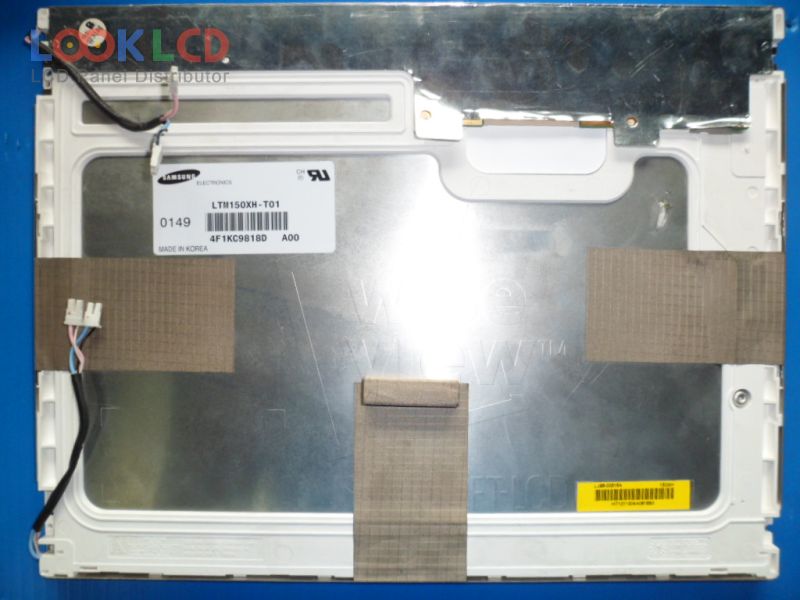

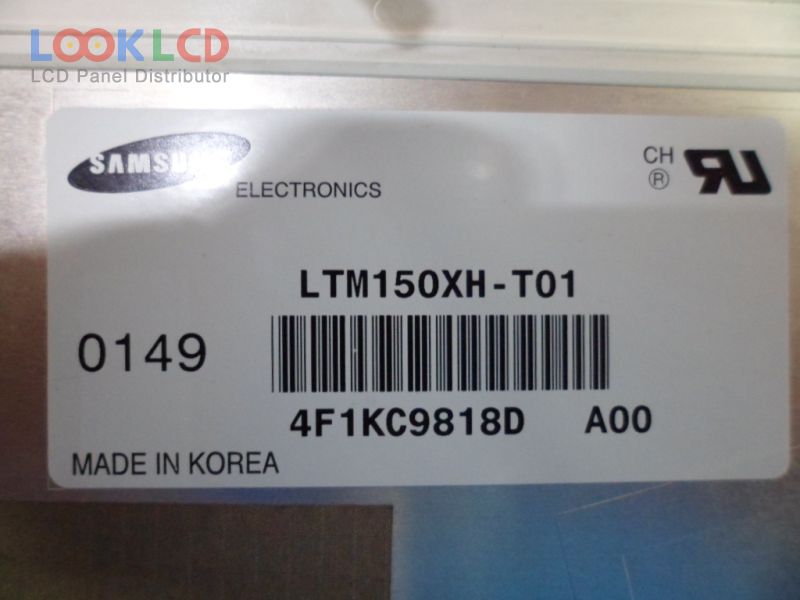

| Varenummer | LTM150XH-T01 |
| Mærke | Samsung |
| Størrelse | 15.0 |
| Ansøgning | DMPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 300:1 |
| Farver | 16.2M |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | SAMSUNG |
| panel model | LTM150XH-T01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.0 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 304.128×228.096 mm |
| omrids | 331.6×254.8×13 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC) |
| responstid | 5/20 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/55/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | TTL (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.)(VDD) |
| Ansøgning | DMPC |
