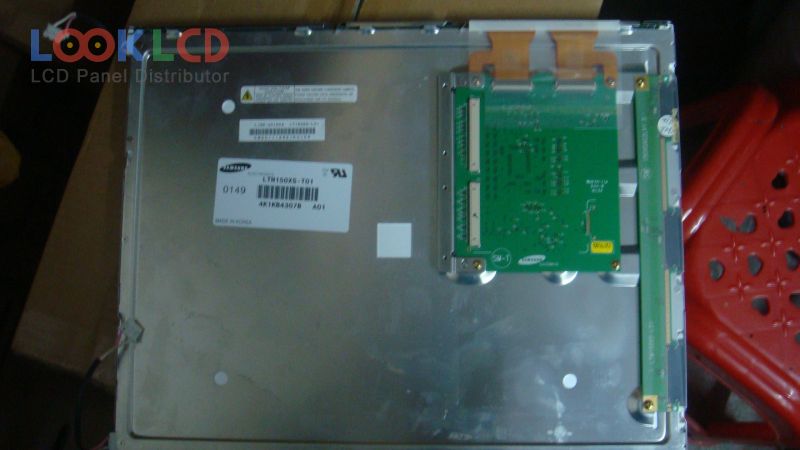

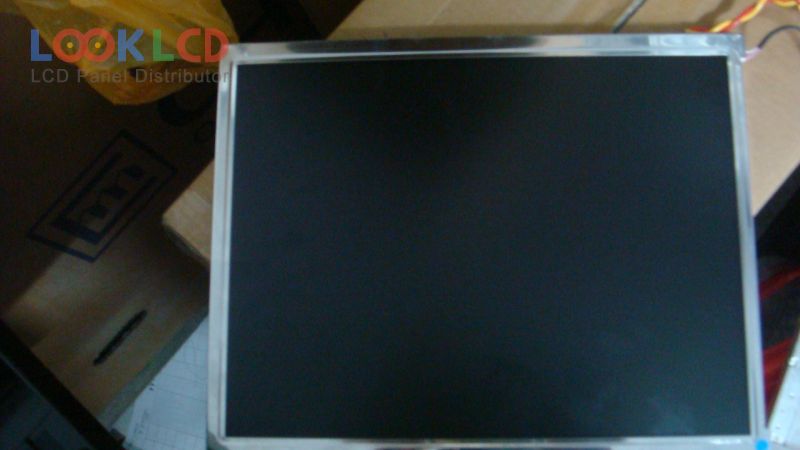

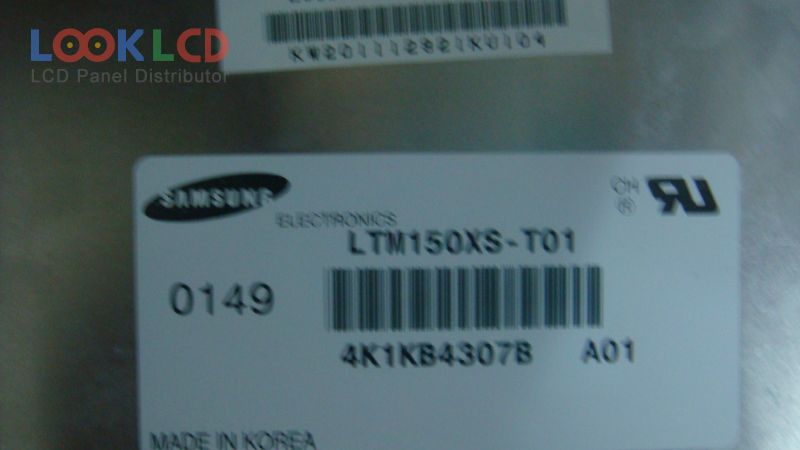

| Varenummer | LTM150XS-T01 |
| Mærke | Samsung |
| Størrelse | 15.0 |
| Ansøgning | DMPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | SAMSUNG |
| panel model | LTM150XS-T01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.0 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 304.128×228.096 mm |
| omrids | 331.3×257.9×16.4 mm |
| overflade | Antiglare (Haze 12%), Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 10/35 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/55/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | TTL (2 ch, 6-bit), 55 pins |
| indgangsspænding | 3.3V (Typ.)(VDD) |
| Ansøgning | DMPC |
| LQ150X1LGN1 | SHARP | 15.0 | 1024×768 |
| LTM150XH-L01 | Samsung | 15.0 | 1024×768 |
| LTM150XH-L04 | Samsung | 15.0 | 1024×768 |
| LTM150XH-L06 | Samsung | 15.0 | 1024×768 |
| LTM150XH-T01 | Samsung | 15.0 | 1024×768 |
| LTM150XO-L01 | Samsung | 15.0 | 1024×768 |
| LTM150XO-L21 | Samsung | 15.0 | 1024×768 |
| LTM150XS-L04 | Samsung | 15.0 | 1024×768 |
| LTM150XS-T01 | Samsung | 15.0 | 1024×768 |
| TX38D03VM1AAA | KOE | 15.0 | 1024×768 |
| LM170E03-TLJ6 | LG Display | 17.0 | 1280×1024 |
| LM185WH1-TLF1 | LG Display | 18.5 | 1366×768 |
| LM190E08-TLJ8 | LG Display | 19.0 | 1280×1024 |
| LM238WF4-SSA1 | LG Display | 23.8 | 1920×1080 |
| LM260WU1-SLB1 | LG Display | 25.5 | 1920×1200 |
| LM270WF5-SLB1 | LG Display | 27.0 | 1920×1080 |
| LM300W01-STA4 | LG Display | 30.0 | 2560×1600 |
| M215HGJ-P02 | Innolux | 21.5 | 1920×1080 |
| M220EW01 V2 | AUO | 22.0 | 1680×1050 |
| MT215DW01 V.1 | Innolux | 21.5 | 1920×1080 |
