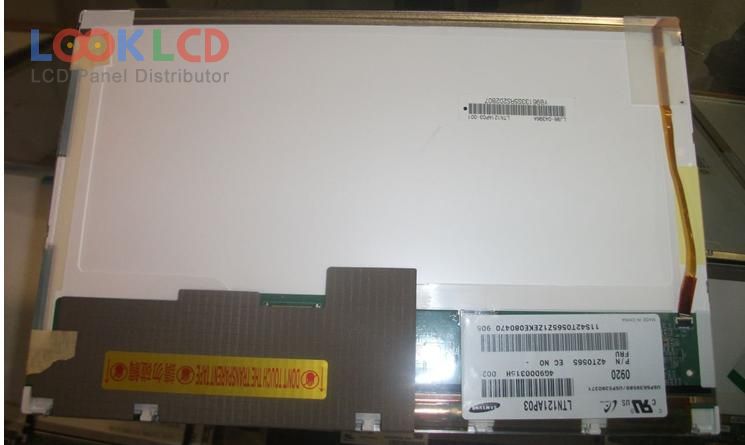

| Varenummer | LTN121AP03-001 |
| Mærke | Samsung |
| Størrelse | 12.1 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN121AP03-001 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | PVA, Normally Black, Transmissive |
| aktivt område | 261.12×163.2 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | |
| vise farver | 262K (6-bit) |
| responstid | |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | WLED |
| signal interface | LVDS (1 ch, 6-bit) |
| Ansøgning | NBPC |
| LTN121AP03-001 | Samsung | 12.1 | 1280×800 |
| LTN121AP03-002 | Samsung | 12.1 | 1280×800 |
| LTN121AP05-302 | Samsung | 12.1 | 1280×800 |
| LTN121AP06-301 | Samsung | 12.1 | 1280×800 |
| LTN121AT02-001 | Samsung | 12.1 | 1280×800 |
| LTN121AT02-A01 | Samsung | 12.1 | 1280×800 |
| LTN121AT06-G01 | Samsung | 12.1 | 1280×800 |
| LTN121AT07-L02 | Samsung | 12.1 | 1280×800 |
| LTN121AT10-301 | Samsung | 12.1 | 1280×800 |
| LTN121AT11-803 | Samsung | 12.1 | 1280×800 |
| B133EW07 V2 | AUO | 13.3 | 1280×800 |
| B156HTN01.1 | AUO | 15.6 | 1920×1080 |
| CLAA140WB01A | CPT | 14.0 | 1366×768 |
| LP156WH1-TLC2 | LG Display | 15.6 | 1366×768 |
| LP201WE1-TLA1 | LG Display | 20.1 | 1680×1050 |
| LTD121KA0S | TOSHIBA | 12.1 | 1024×768 |
| LTD131EWSX | TOSHIBA | 13.1 | 1366×768 |
| LTN154X3-L01 | Samsung | 15.4 | 1280×800 |
| N156O6-L02 | Innolux | 15.6 | 1600×900 |
| QD15TL04 Rev.04 | QDI | 15.4 | 1280×800 |
