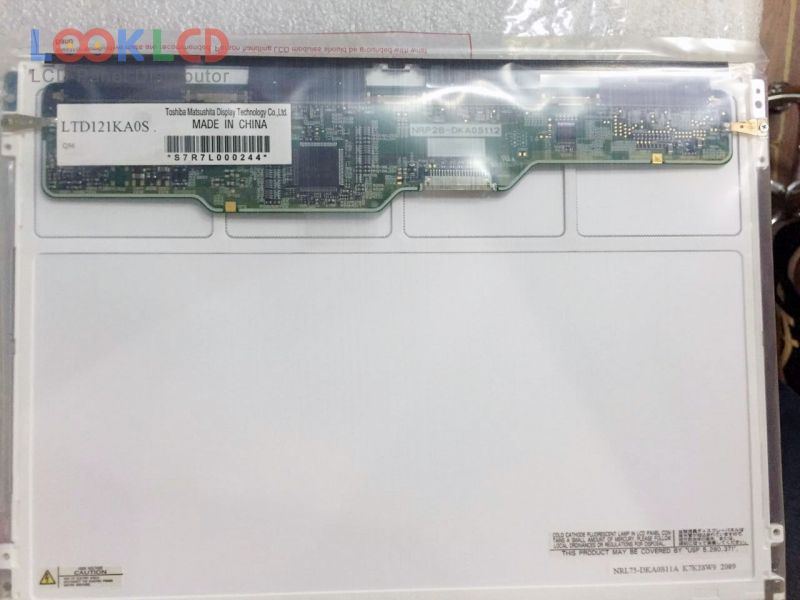

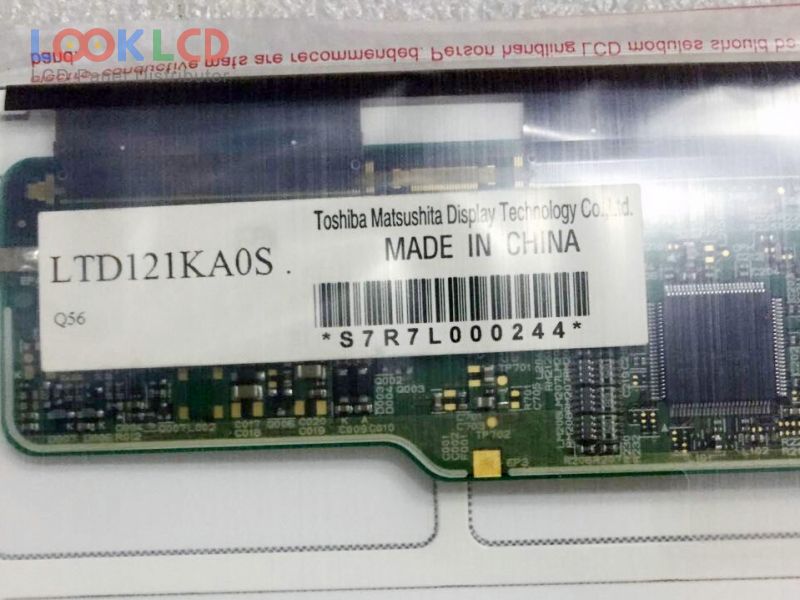

| Varenummer | LTD121KA0S |
| Mærke | TOSHIBA |
| Størrelse | 12.1 |
| Ansøgning | NBPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 170 |
| CR | 150:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | Toshiba Matsushita |
| panel model | LTD121KA0S 1 Compatible model |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 245.76×184.32 mm |
| omrids | 269×199×6.5 mm |
| overflade | Antiglare |
| lysstyrke | 170 cd/m² (Typ.) |
| kontrastforhold | 150:1 (Min.) |
| vise farver | 262K (6-bit) |
| responstid | 50/50 (Max.)(Tr+Td) |
| synsvinkel | |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| rohs: | |
