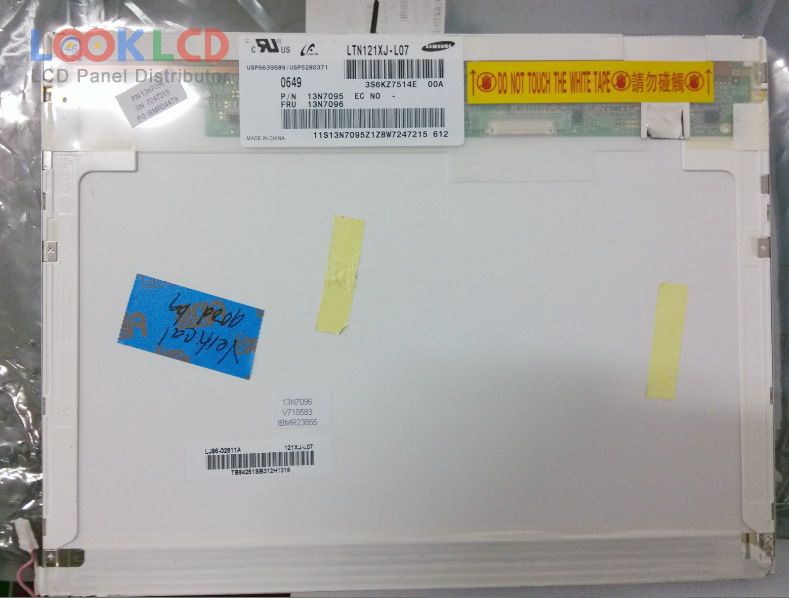

| Varenummer | LTN121XJ-L07 |
| Mærke | Samsung |
| Størrelse | 12.1 |
| Ansøgning | NBPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 150 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN121XJ-L07 6 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 245.76×184.32 mm |
| omrids | 261×198×5 mm |
| overflade | Antiglare (Haze 40%), Hard coating (2H) |
| lysstyrke | 150 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Min.) |
| vise farver | 262K (6-bit) |
| responstid | 40 (Typ.)(Tr+Td) |
| synsvinkel | 40/40/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LTN121AP03-001 | Samsung | 12.1 | 1280×800 |
| LTN121AP03-002 | Samsung | 12.1 | 1280×800 |
| LTN121AP06-301 | Samsung | 12.1 | 1280×800 |
| LTN121AT01-002 | Samsung | 12.1 | 1280×800 |
| LTN121AT07-L02 | Samsung | 12.1 | 1280×800 |
| LTN121W1-L02 | Samsung | 12.1 | 1280×800 |
| LTN121W3-L01 | Samsung | 12.1 | 1280×800 |
| LTN121W4-L01 | Samsung | 12.1 | 1280×800 |
| LTN121XJ-L05 | Samsung | 12.1 | 1024×768 |
| LTN121XL01-N03 | Samsung | 12.1 | 1024×768 |
| B154EW02 V2 | AUO | 15.4 | 1280×800 |
| B156XW04 V7 | AUO | 15.6 | 1366×768 |
| HT140WXB-601 | BOE | 14.0 | 1366×768 |
| LP141WX5-TLC1 | LG Display | 14.1 | 1280×800 |
| LP141XA-A1 | LG Display | 14.1 | 1024×768 |
| LP156WH8-TLA2 | LG Display | 15.6 | 1366×768 |
| LTD131EWSX | TOSHIBA | 13.1 | 1366×768 |
| LTN141AT03-301 | Samsung | 14.1 | 1280×800 |
| N121I7-L01 | Innolux | 12.1 | 1280×800 |
| NV125QUM-N81 | BOE | 12.5 | 3840×2160 |
