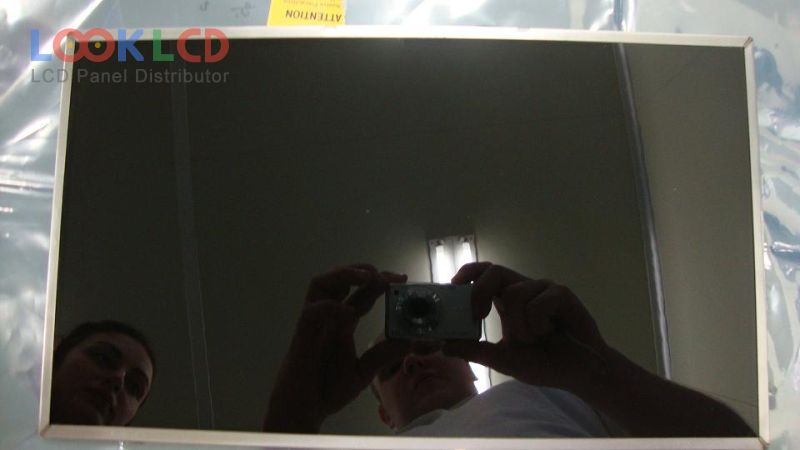

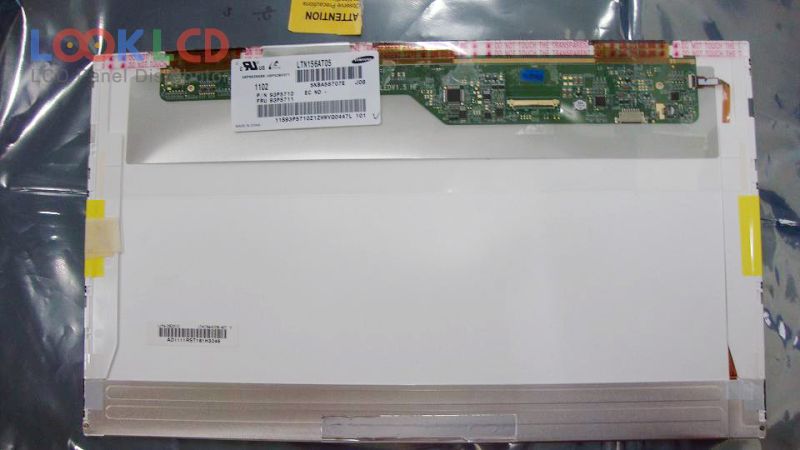

| Varenummer | LTN156AT05-J08 |
| Mærke | Samsung |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN156AT05-J08 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 344.232×193.536 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | |
| lysstyrke | |
| kontrastforhold | |
| vise farver | 262K (6-bit) |
| responstid | |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | WLED |
| signal interface | LVDS (1 ch, 6-bit) |
| Ansøgning | NBPC |
| LTN156AT01-V01 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-B04 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-B01 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-H02 | Samsung | 15.6 | 1366×768 |
| LTN156AT15-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT20-P02 | Samsung | 15.6 | 1366×768 |
| LTN156AT23-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT24-P01 | Samsung | 15.6 | 1366×768 |
| LTN156AT29-W02 | Samsung | 15.6 | 1366×768 |
| LTN156AT35-H01 | Samsung | 15.6 | 1366×768 |
| B121EW08 V0 | AUO | 12.1 | 1280×800 |
| B141EW04 V6 | AUO | 14.1 | 1280×800 |
| CLAA101WB03 | CPT | 10.1 | 1366×768 |
| LP154WX5-TLC1 | LG Display | 15.4 | 1280×800 |
| LP156WH1-TLC2 | LG Display | 15.6 | 1366×768 |
| LTN156FL02-L01 | Samsung | 15.6 | 3840×2160 |
| LTN160AT06-B01 | Samsung | 16.0 | 1366×768 |
| N156BGE-L11 | Innolux | 15.6 | 1366×768 |
| N164HGE-L12 | Innolux | 16.4 | 1920×1080 |
| QD14TL01 Rev.04 | QDI | 14.1 | 1280×800 |
