| Varenummer | LTN156FL02-L01 |
| Mærke | Samsung |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 3840×2160 |
| Sammensætning | LCM |
| Lysstyrke | 270 |
| CR | 700:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | SAMSUNG |
| panel model | LTN156FL02-L01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 3840RG(BW)×2160 , UHD |
| visningstilstand | PLS, Normally Black, Transmissive |
| aktivt område | 344.448×193.752 mm |
| omrids | 359.5×223.8×3 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| overflade | Glare (Haze 0%) |
| lysstyrke | 270 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR＞10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4S10PWLEDEmbedded (LED Driver) |

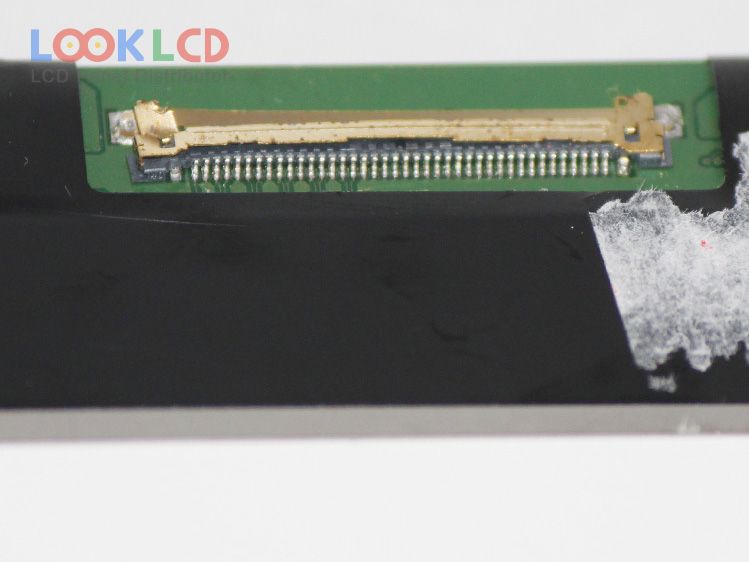

| signal interface | eDP (4 Lanes), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
