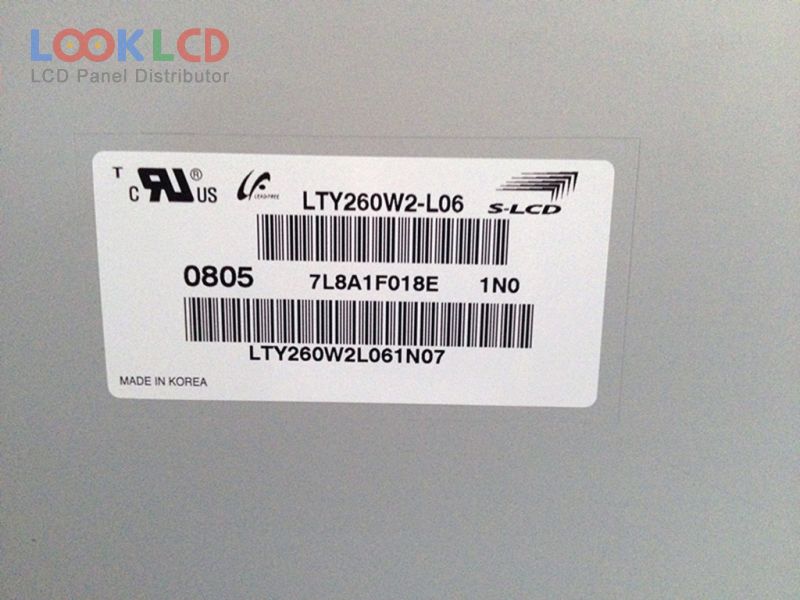

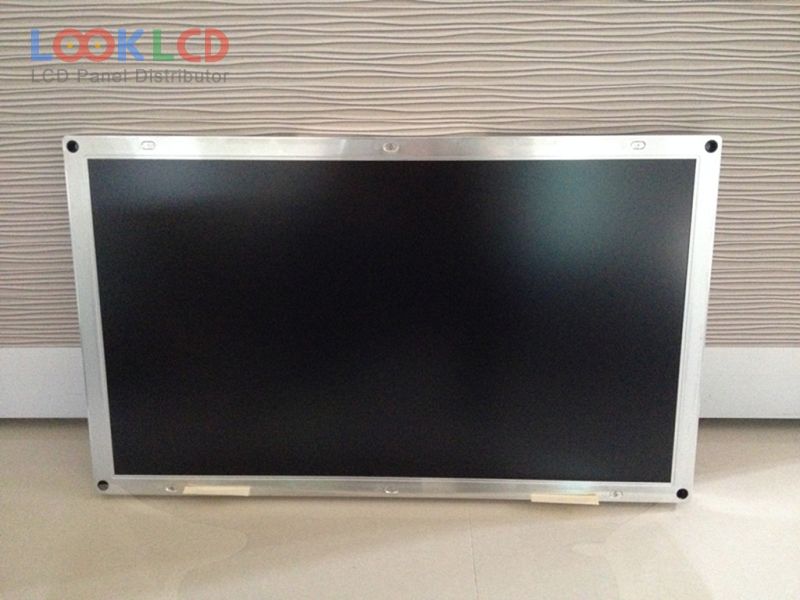

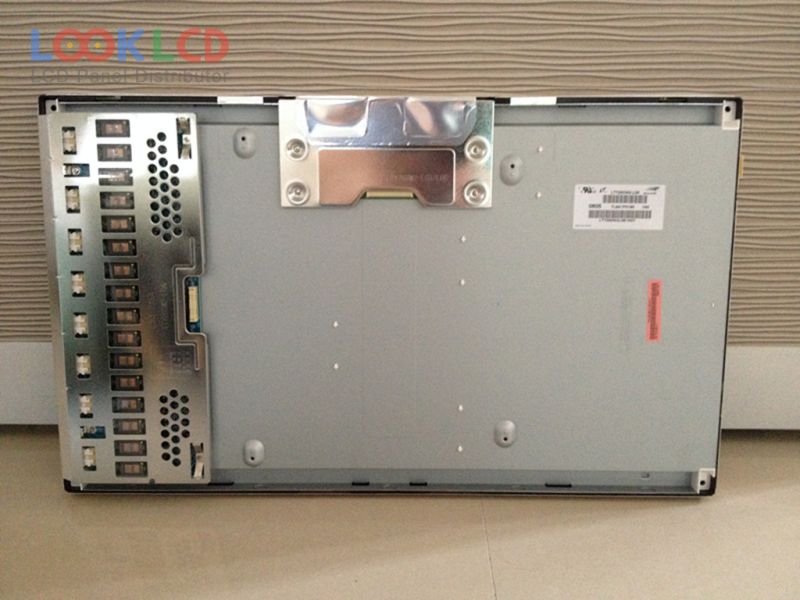

| Varenummer | LTY260W2-L06 |
| Mærke | Samsung |
| Størrelse | 26.0 |
| Ansøgning | LCTV |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 480 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | S-LCD |
| panel model | LTY260W2-L06 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 26.0 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | APVA, Normally Black, Transmissive |
| aktivt område | 575.769×323.712 mm |
| omrids | 626×373×42 mm |
| overflade | Antiglare (Haze 44%), Hard coating (3H) |
| lysstyrke | 480 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 20/6 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 8 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | LCTV |
