| Varenummer | LTY460HQ05-A01 |
| Mærke | Samsung |
| Størrelse | 46 |
| Ansøgning | LCTV |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 4000:1 |
| Farver | 1.07B |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |

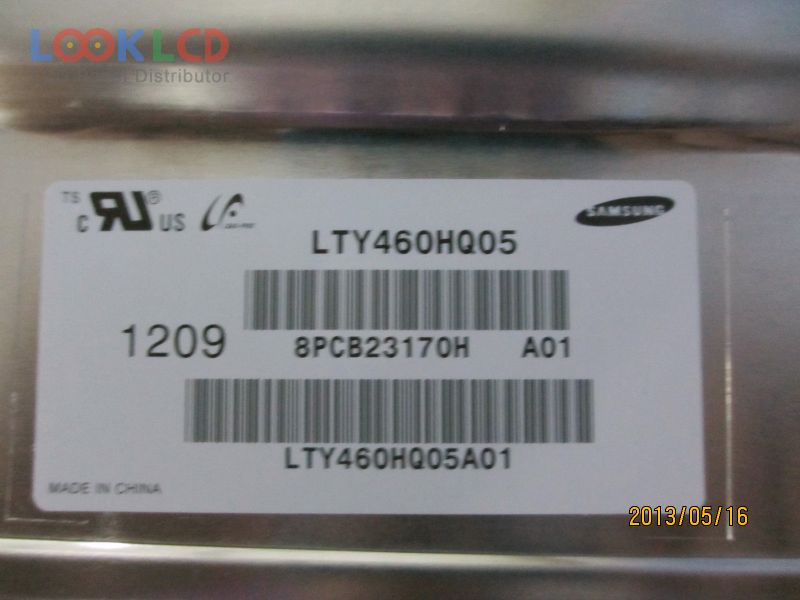

| panel model | LTY460HQ05-A01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 46 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | S-PVA, Normally Black, Transmissive |
| aktivt område | 1018.08×572.67 mm |
| omrids | 1048.9×603.3×26.2 mm |
| overflade | Antiglare (Haze 2.3%), Hard coating (2H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 4000:1 (Typ.) |
| vise farver | 1.07B (10-bit), CIE193172% |
| responstid | 3.5 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | LVDS (2 ch, 10-bit), 65 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
